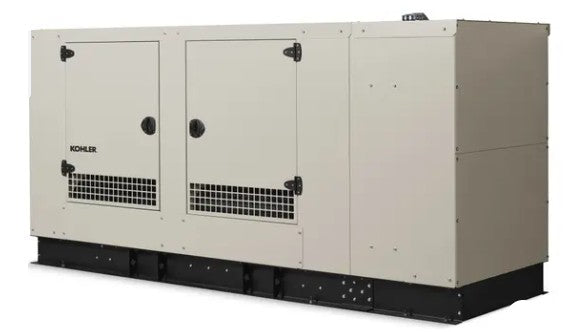

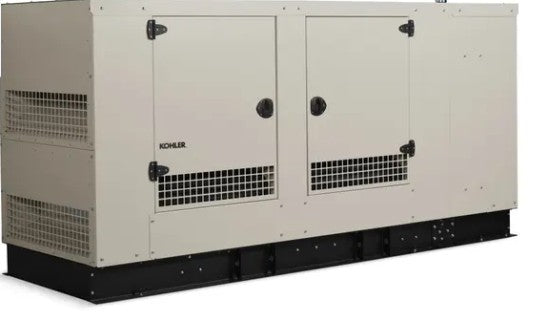

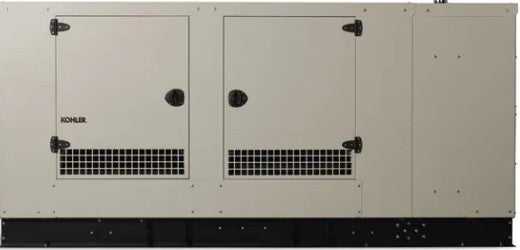

Kohler (Now Rehlko) 100kW Generator (Genset) – Model KG100R

Rated kW LP 100 kW

Rated kW NG 100 kW

Amps LP 417 amps

Amps NG 417 amps

Peak Motor Starting kVA @240 V 440 kVa

Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.

Displacement 6.2 L (378 cu. In.)

Horsepower NG 204 HP, LP 175 HP

Enclosure Material Aluminum Steel

Sound Output During Weekly Exercise 68 dB(A)

Sound output During Full-speed Operation 69 dB(A)

Response Time 10 seconds

Warranty Premium five-year limited warranty

Country of Origin US

Automatic Transfer Switch Included Sold Separately

Remote Monitor Available Sold Separately

Off Grid / Utility backup Utility Backup

Weight 3340 lbs. (3562 kg)

Alternator Type 4-Pole, Rotating Field

Fuel Consumption on NG at 50% Load? 946 cfh

Fuel Consumption on LP at 50% Load? 388 cfh

Controller APM402

Cylinder Arrangement V-8

Dimensions 3525 mm x 1154 mm x 1665 mm (138.8 in. x 45.4 in. x 65.5 in.)

Engine Manufacturer/Description

KOHLER Engine Model KG6208THD, 6.2L, Turbocharged

Engin/Alternator RPM 1800

Fuel Type Natural Gas | LPG

Frequency 60 Hz

Phase Single PhaseThree Phase

Voltage @60 Hzs 120/240

Digital Voltage Regulation ±0.5%

Durability

Our generators feature commercial-grade engines tested for 2,000 hours of continuous operation and extreme conditions. Their enclosures are designed to endure winds up to 181 MPH, ensuring resilience and durability.

Crafted for Excellence

Our generators offer a superior experience from day one and for years to come. Our durable design ensures your generator lasts longer, operates more quietly, and starts more efficiently under higher loads than competing models.

Contact us at sales@nativeinstinct.com for a quote or if you have questions about your project. Ready to order? Call us at 1-833-354-3356.
