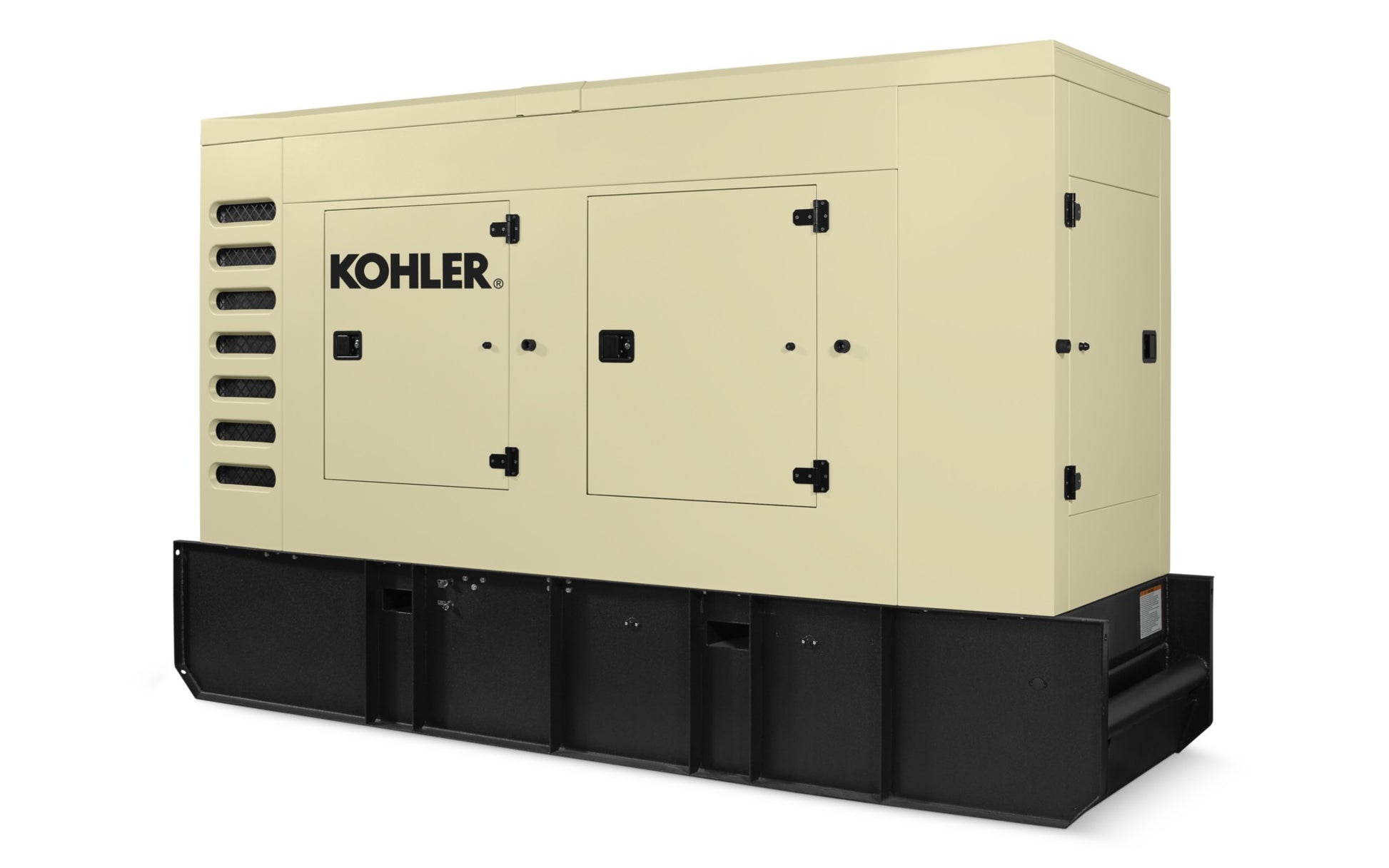

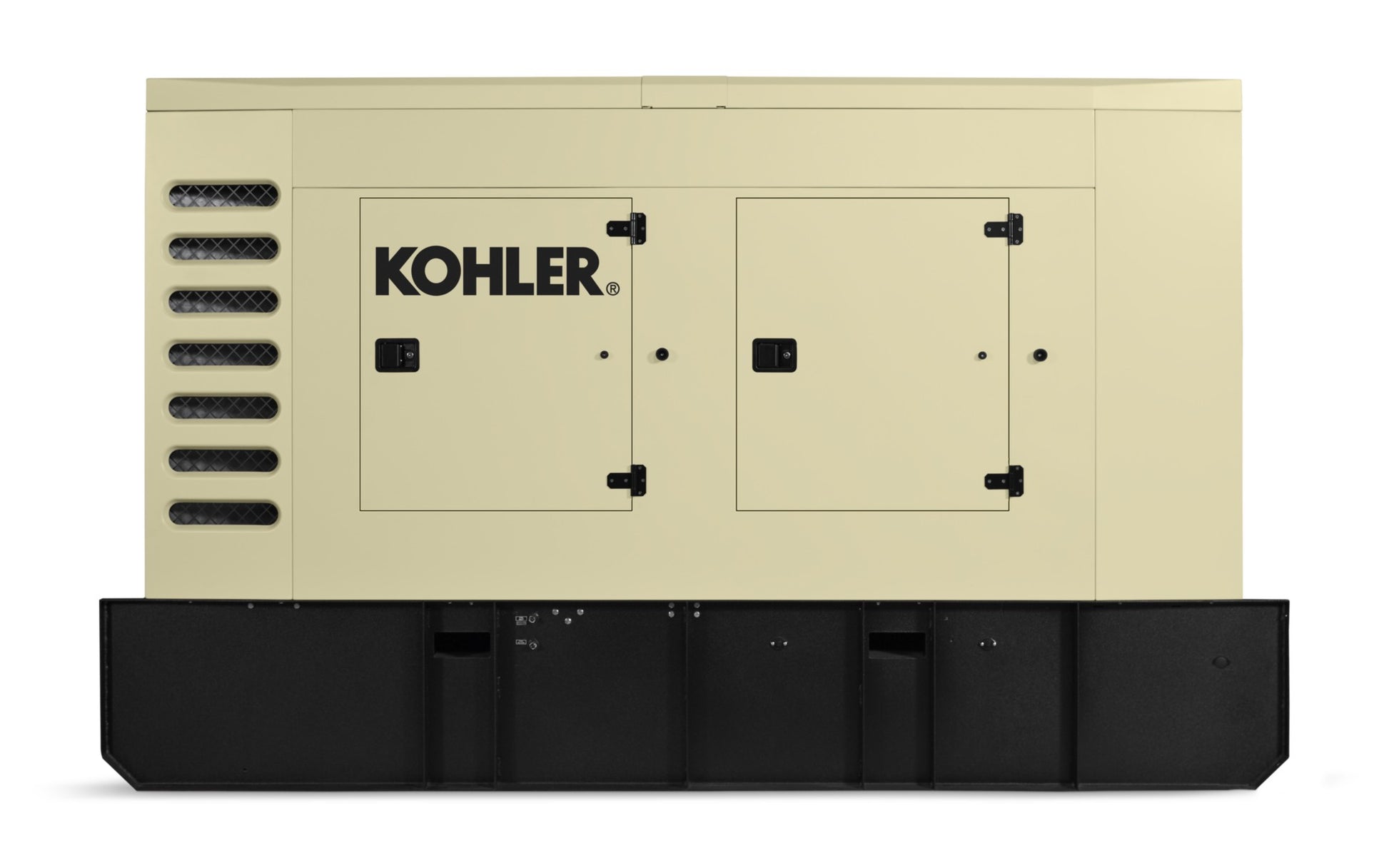

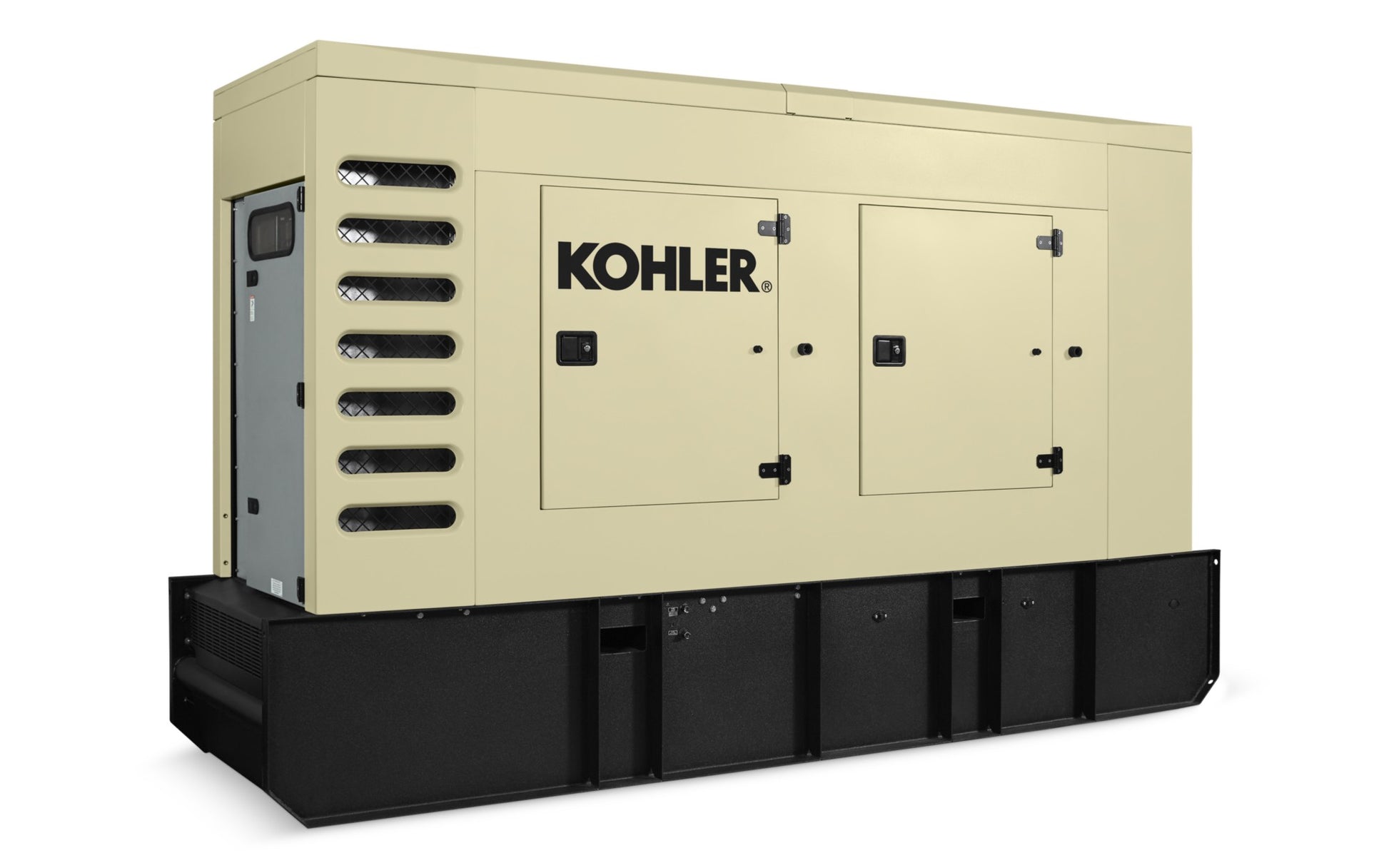

Kohler (Now Rehlko) 125kW Diesel Generator (Genset) – Model 125REOZJ4 | Tier 4 Final | 24-Hour Fuel Tank

Standby Range (kW/kVA) 107-130/107-162.5

Prime Range (kW/kVA) 99.5-117/99.5-146

Fuel Type Diesel

Frequency 60 Hz

Speed 1800 RPM

Alternator Type 4-Pole, Rotating-Field

Engine Manufacturer John Deere

Standard Features

Rehlko provides one-source responsibility for the generating system and accessories.

Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO) / Renewable Diesel (RD) fuels compliant with EN15940/ ASTM D975.

The generator set and its components are prototype-tested, factory-built, and production-tested.

The 60 Hz generator set offers a UL 2200 listing.

The generator set accepts rated load in one step.

The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.

A one-year limited warranty covers all generator set systems and components. Two- and five-year extended limited warranties are also available.

Other Features

Rehlko designed controller for one-source system integration and remote communication.

The low coolant level shutdown prevents overheating.

Durable steel, sound-attenuating housing with quiet operation of 70 dB(A) log average @ 7 m (23 ft.) with full load at the prime rating.

125% environmental containment basin for oil and coolant.

110% secondary containment tank for fuel.

UL 142 listed subbase fuel tank for 24-hour run time with full load at the prime rating (minimum).

Customer connection panel with main circuit breaker, remote start connection, and emergency stop switch.

Alternator Features

The unique Fast-Response® X excitation system delivers excellent voltage response and short-circuit capability using a rare-earth, permanent magnet (PM)-excited alternator.

NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.

Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds.

Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.

Windings are vacuum-impregnated with epoxy varnish fordependability and long life.

Superior voltage waveform from a two-thirds pitch stator and skewed rotor.

Engine Features

The generator set engine is certified by the Environmental Protection Agency (EPA) to conform to Tier 4 Final nonroad emissions regulations.

Heavy-duty air cleaner with air restrictor indicator.

Lockable battery disconnect switch.
