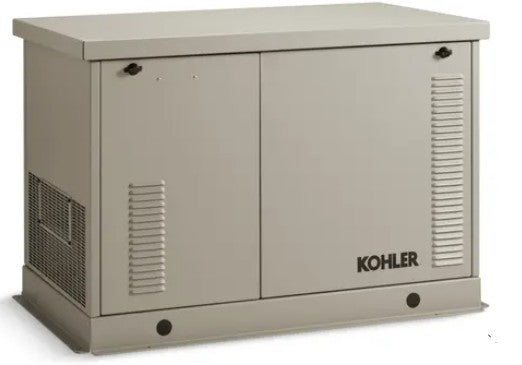

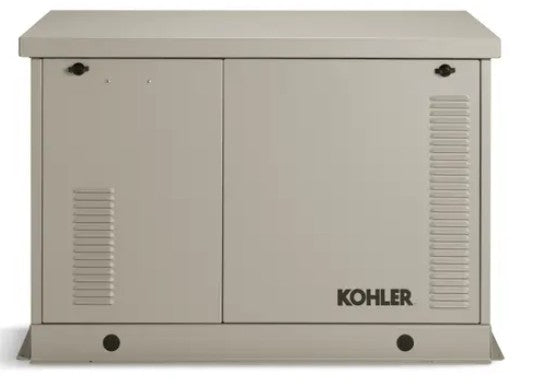

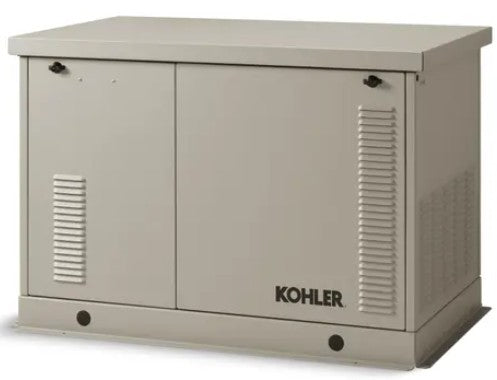

Kohler (Now Rehlko) 12kW Generator (Genset) – Model 12RES

Rated kW LP 12 kW

Rated kW NG 10.4 kW

Amps LP 50 amps

Amps NG 43 amps

Peak Motor Starting kVA @240 V 32 kVa

Alternator Note All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.

Displacement 0.725 L (44 cu. in.)

Horsepower NG 20.5 HP, LP 23.6 HP

Enclosure Material Steel

Sound Output During Weekly Exercise 65 dB(A)

Sound output During Full-speed Operation 65 dB(A)

Response Time 10 seconds

Warranty Premium five-year limited warranty

Country of Origin US

Automatic Transfer Switch Included Included

Off Grid / Utility backup Off GridUtility Backup

Weight 400 lbs. (182 kg)

Alternator Type 2-Pole, Rotating Field

Fuel Consumption on NG at 50% Load? 124 cfh

Fuel Consumption on LP at 50% Load? 60 cfh

Controller ADC-RES Controller

Cylinder Arrangement V-2

Dimensions 1123 mm x 726 mm x 804 mm (44.2 in. x 28.6 in. x 31.6 in.)

Engine Manufacturer/Description KOHLER

Engine Model CH740

Engin/Alternator RPM 3600

Fuel Type Natural Gas | LPG

Frequency 50 Hz | 60 Hz

Phase Single Phase

Voltage @60 Hzs 120/240

Digital Voltage Regulation ±1.5%

Built in Mounting pad Yes

Off-Grid Rated

Run as primary power application for your cabin or remote lifestyle.

Sleep Mode

Simple controller can go to sleep mode to save battery power when not in use.

Durability

Our generators feature commercial-grade engines tested for 2,000 hours of continuous operation and extreme conditions. Their enclosures are designed to endure winds up to 181 MPH, ensuring resilience and durability.

Crafted for Excellence

Our generators offer a superior experience from day one and for years to come. Our durable design ensures your generator lasts longer, operates more quietly, and starts more efficiently under higher loads than competing models.

Contact us at sales@nativeinstinct.com for a quote or if you have questions about your project. Ready to order? Call us at 1-833-354-3356.
