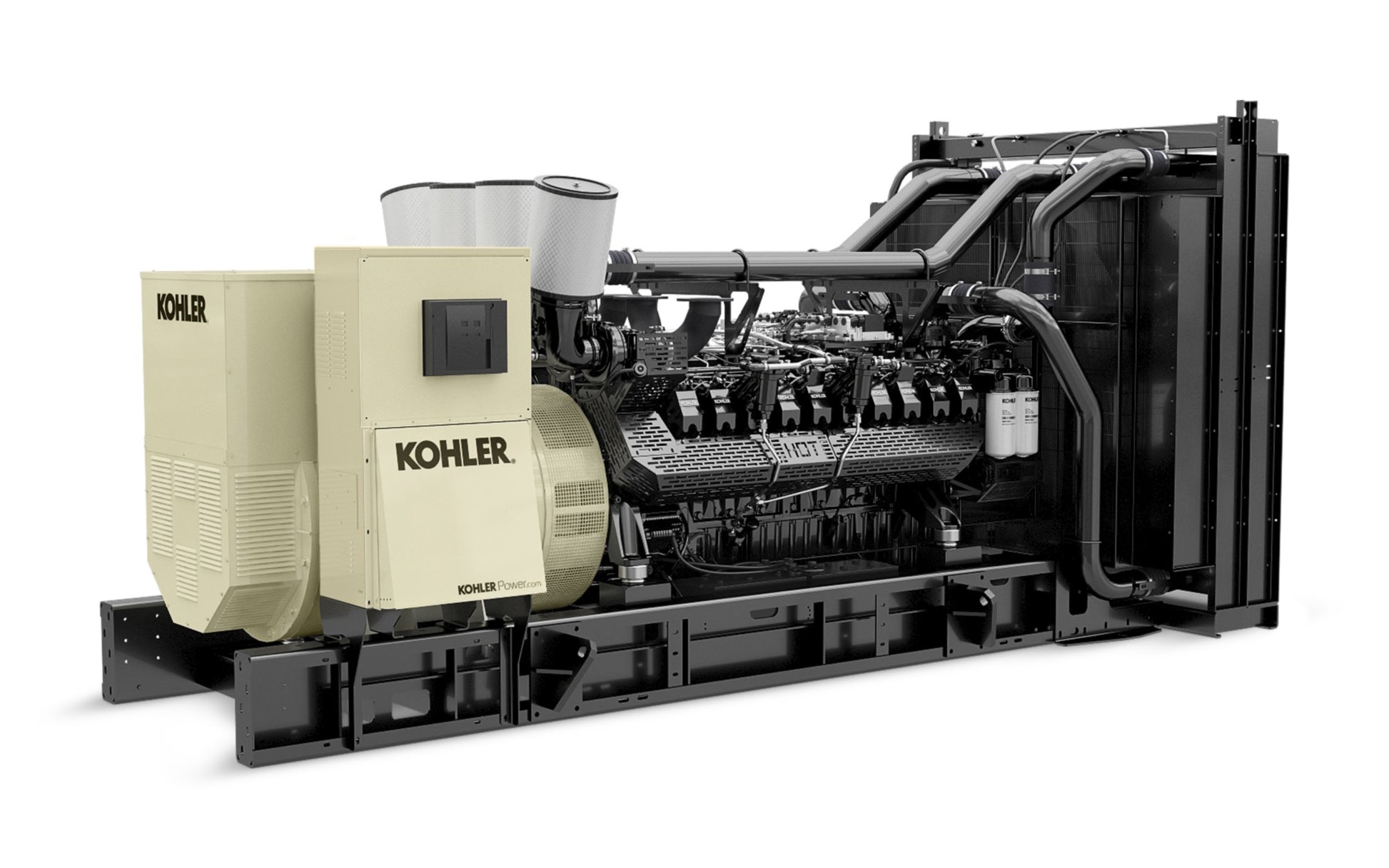

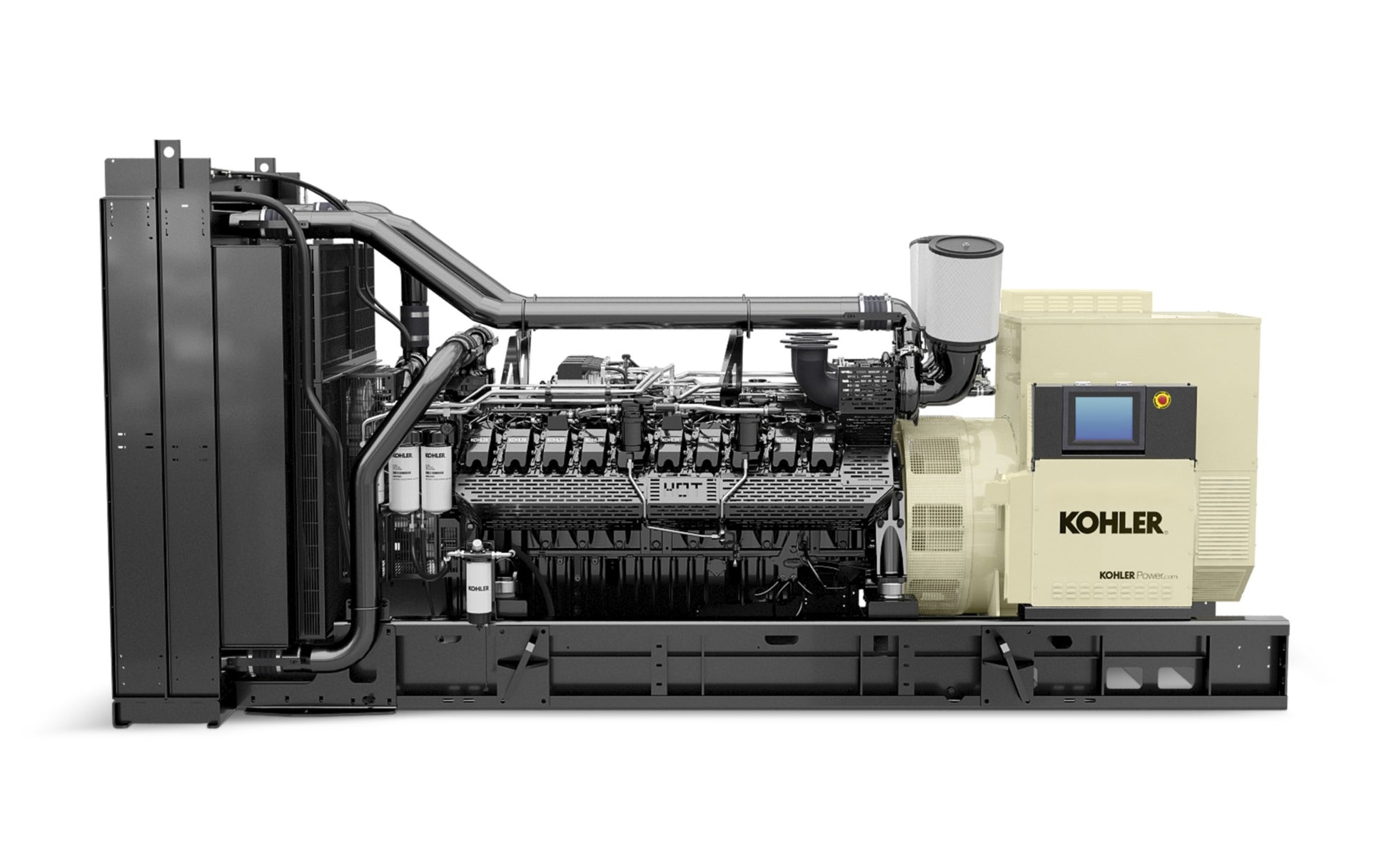

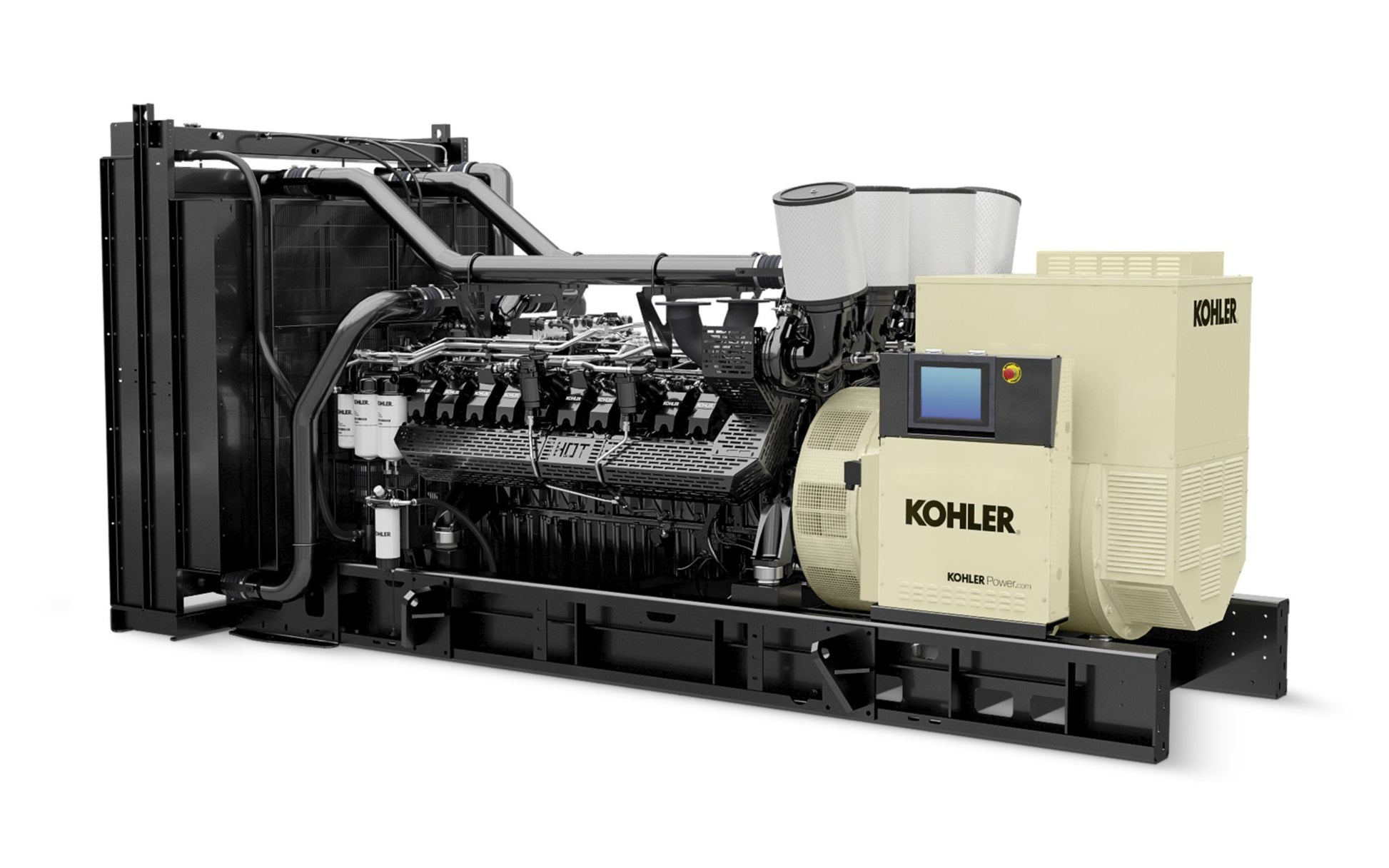

Kohler (Now Rehlko) 1600kW Diesel Generator (Genset) – Model KD1600

Standby Range (kW/kVA) 1320-1600/1650-2000

Prime Range (kW/kVA) 1184-1440/1480-1800

Fuel Type Diesel

Frequency 50 Hz | 60 Hz

Speed 1800 RPM

Alternator Type 4-Pole, Rotating-Field

Engine Manufacturer Rehlko

Standard Features

Rehlko provides one-source responsibility for the generating system and accessories.

Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO)/Renewable Diesel (RD) fuels compliant with EN15940/ASTM D975.

The generator set and its components are prototype-tested, factory-built, and production-tested.

The 60 Hz generator set offers a UL 2200 listing.

The generator set accepts rated load in one step.

The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.

A standard three-year unlimited-hour limited warranty for standby applications in the U.S. And Canada. Five-year basic, five-year comprehensive, and ten-year extended limited warranties are also available.

A standard two-year or 8700-hour limited warranty for prime power applications.

Other Features

Rehlko designed controllers for one-source system integration and remote communication.

The low coolant level shutdown prevents overheating (standard on radiator models only).

Reduce operating costs, fuel consumption, and greenhouse gas emissions with Conscious Care™ maintenance program.

An electronic, isochronous governor delivers precise frequency regulation

Multiple circuit breaker configurations

Hurricane-rated enclosures available; 186 mph wind load rating on sound aluminum enclosure

Alternator Features

The pilot-excited, permanent magnet (PM) alternator provides superior short-circuit capability.

NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.

Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds.

Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.

Superior voltage waveform from two-thirds pitch windings and skewed stator.

Brushless alternator with brushless pilot exciter for excellent load response.

Subbase Fuel Tank Features

The fuel tank has a black powder-coat finish texture.

The above-ground rectangular secondary containment tank mounts directly to the generator set, below the generator set skid (subbase).

Both the inner and outer tanks have UL-listed emergency relief vents.

Flexible fuel lines are provided with subbase fuel tank selection.

The containment tank’s construction protects against fuel leaks or ruptures. The inner (primary) tank is sealed inside the outer (secondary) tank. The outer tank contains the fuel if the inner tank leaks or ruptures.

The above ground secondary containment subbase fuel tank meets UL 142 requirements.
