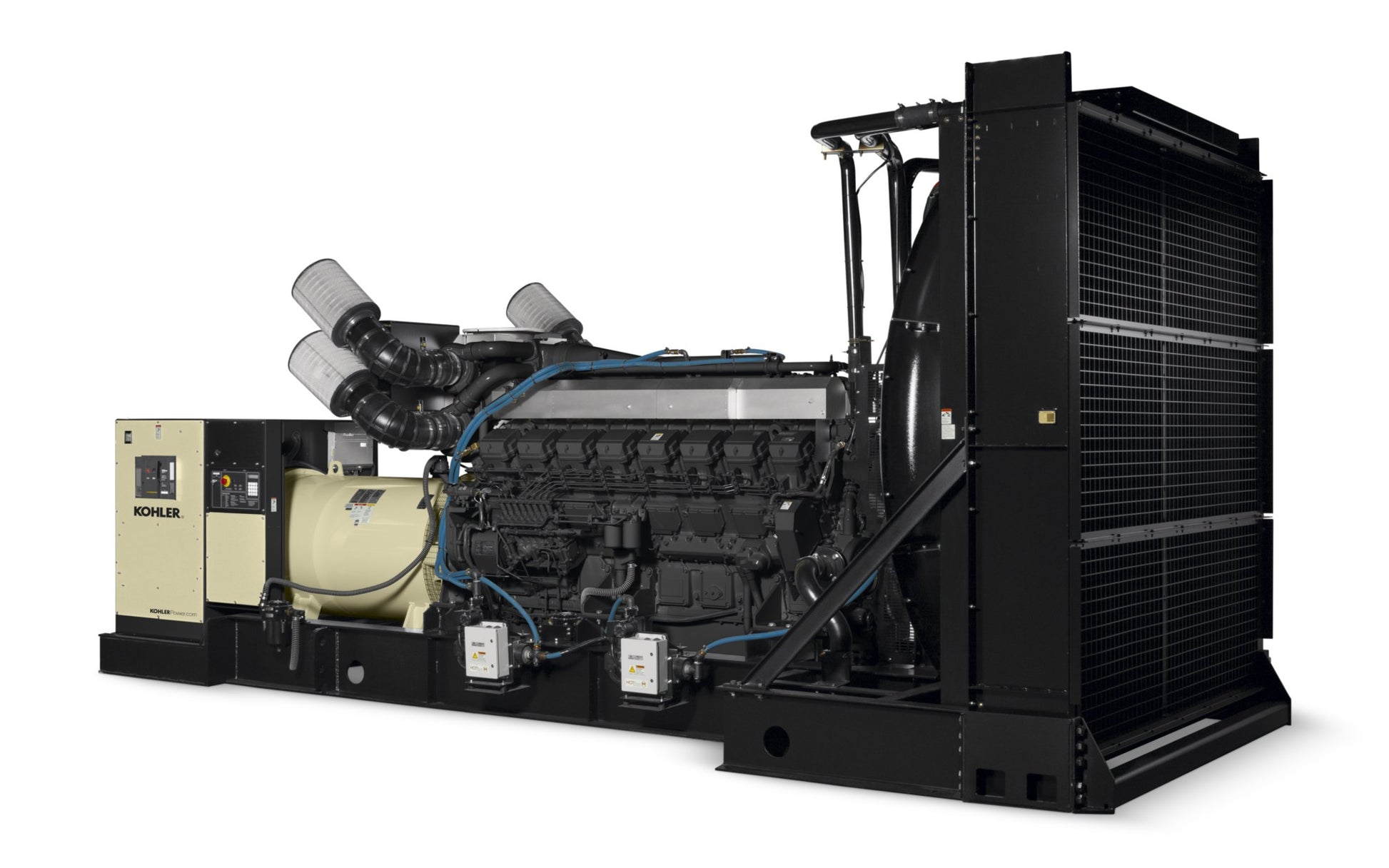

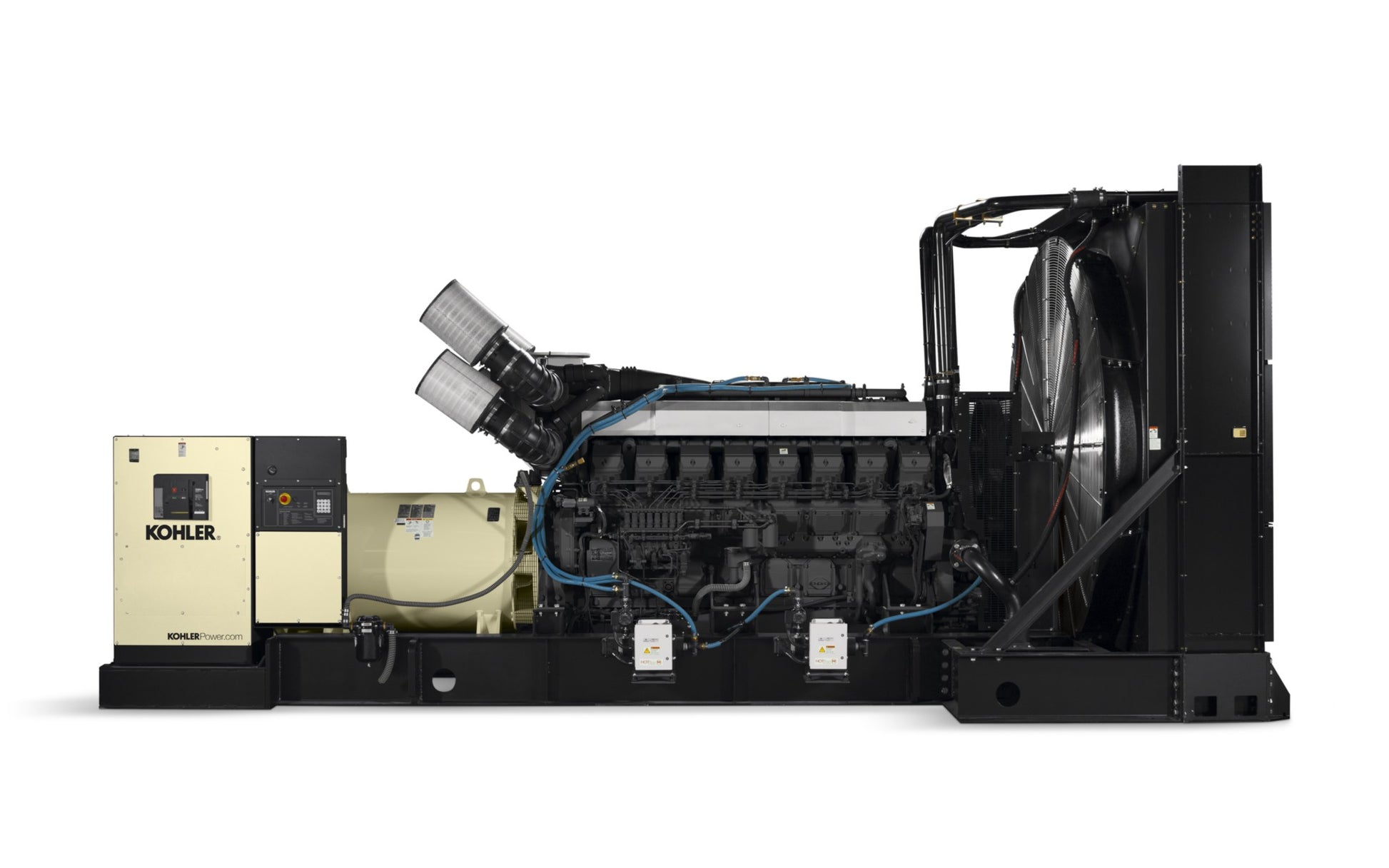

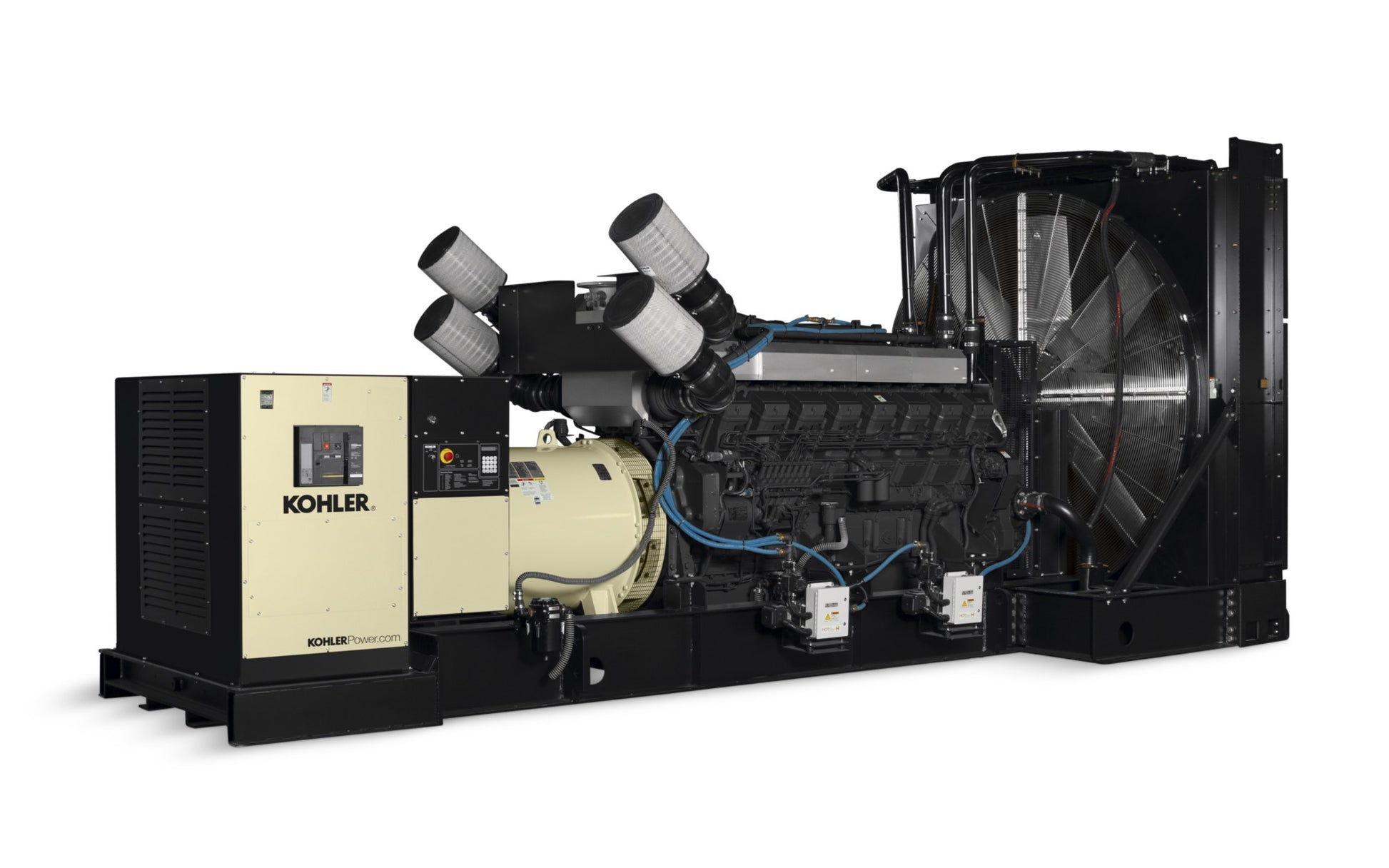

Kohler (Now Rehlko) 1750kW Diesel Generator (Genset) – Model 1750REOZMD
Kohler (Now Rehlko) 1750kW Diesel Generator (Genset) – Model 1750REOZMD
Request a Quote
Couldn't load pickup availability
Standby Range (kW/kVA) 1480-1780/1850-2225
Prime Range (kW/kVA) 1350-1650/1688-2063
Fuel Type Diesel
Frequency 60 Hz
Speed 1800 RPM
Alternator Type 4-Pole, Rotating-Field
Engine Manufacturer Mitsubishi
Standard Features
Rehlko provides one-source responsibility for the generating system and accessories.
Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO)/Renewable Diesel (RD) fuels compliant with EN15940/ASTM D975.
The generator set and its components are prototype-tested, factory-built, and production-tested.
The 60 Hz generator set offers a UL 2200 listing.
The generator set accepts rated load in one step.
The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.
A one-year limited warranty covers all generator set systems and components. Two-, five-, and ten-year extended limited warranties are also available.
Other Features
Rehlko designed controllers for one-source system integration and remote communication.
The low coolant level shutdown prevents overheating (standard on radiator models only).
An electronic, isochronous governor delivers precise frequency regulation.
Multiple circuit breaker configurations.
Alternator Features
The pilot-excited, permanent magnet (PM) alternator provides superior short-circuit capability.
Additional alternator voltages are available including 12.47 kV, 13.2 kV, and 13.8 kV medium voltages.
NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.
Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds.
Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.
Digital solid-state, volts-per-hertz voltage regulator with ±0.25% no-load to full-load regulation.
Contact us at sales@nativeinstinct.com for a quote or if you have questions about your project. Ready to order? Call us at 1-833-354-3356.
