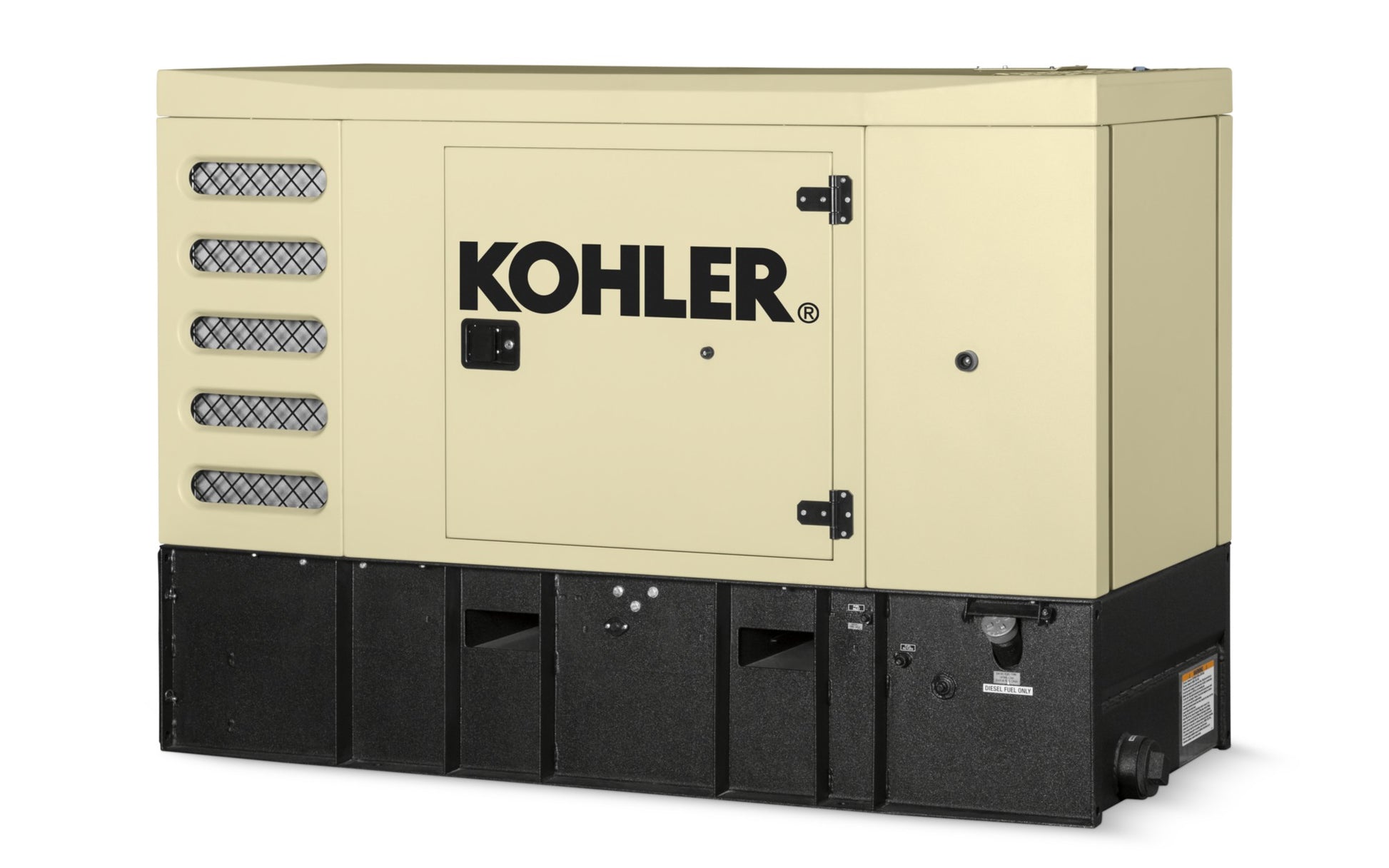

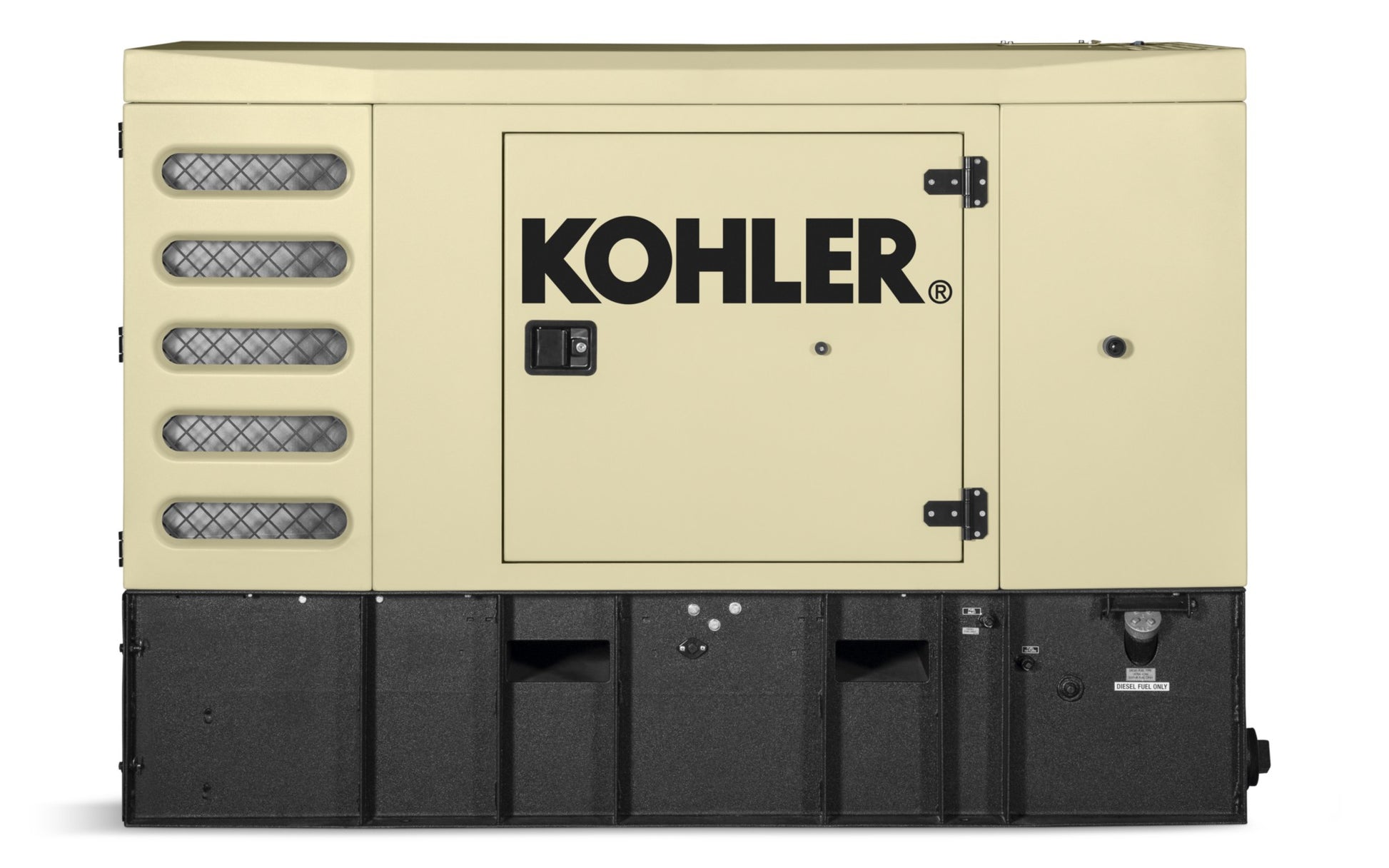

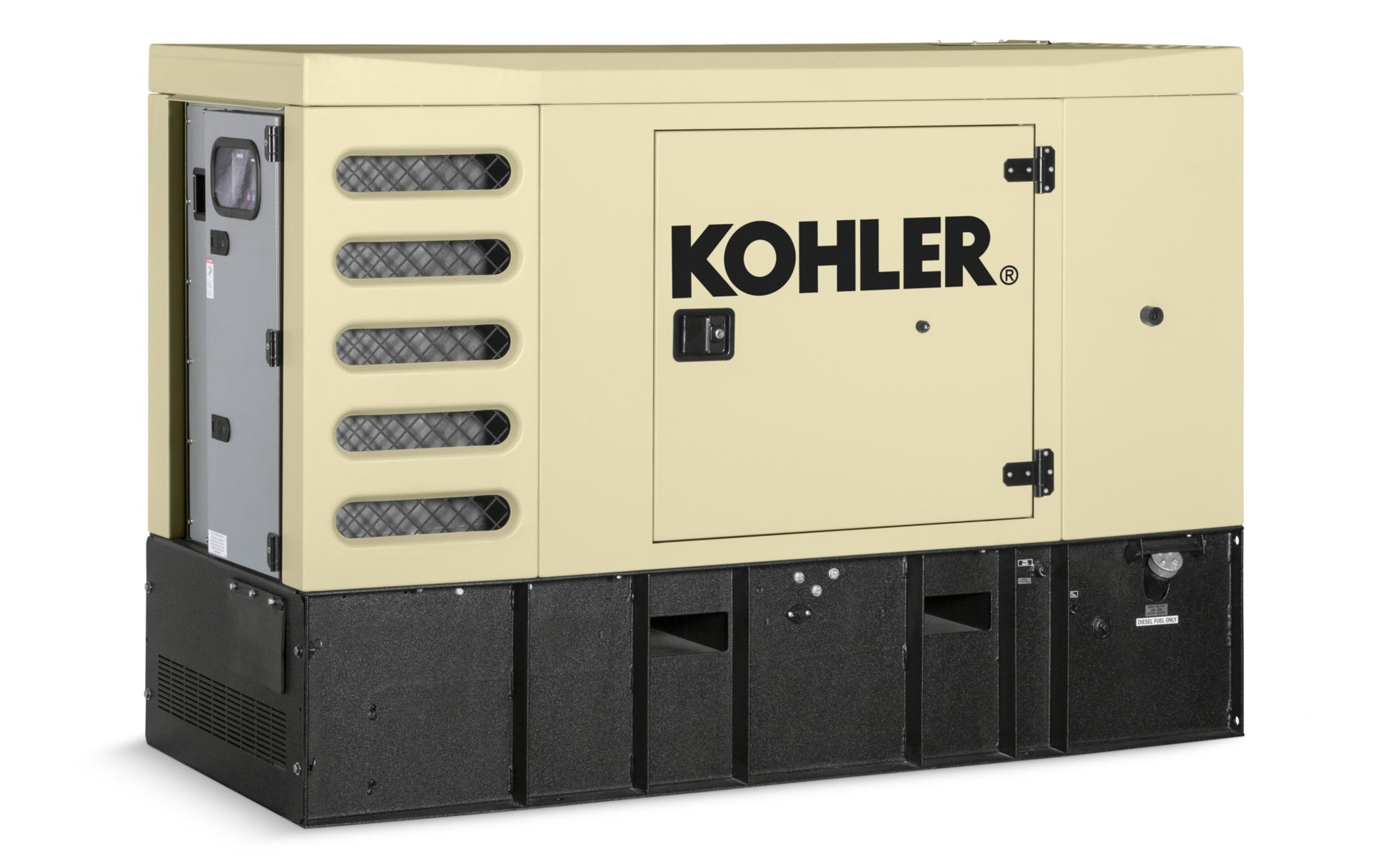

Kohler (Now Rehlko) 30kW Diesel Generator (Genset) – Model 30REOZK4 | Tier 4 Final | 24-Hour Fuel Tank

Standby Range (kW/kVA) 23-30/23-37.5

Prime Range (kW/kVA) 21-28/21-35

Fuel Type Diesel

Frequency 60 Hz

Speed 1800 RPM

Alternator Type 4-Pole, Rotating-Field

Engine Manufacturer Rehlko

Standard Features

Rehlko provides one-source responsibility for the generating system and accessories.

Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO)/Renewable Diesel (RD) fuels compliant with EN15940/ASTM D975.

The generator set and its components are prototype-tested, factory-built, and production-tested.

The 60 Hz generator set offers a UL 2200 listing.

The generator set accepts rated load in one step.

The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.

A one-year limited warranty covers all generator set systems and components. Two- and five-year extended limited warranties are also available.

Other Features

Rehlko designed controller for one-source system integration and remote communication.

The low coolant level shutdown prevents overheating.

Durable steel, sound-attenuating housing with quiet operation of 69 dB(A) log average @ 7 m (23 ft.) with full load at the prime rating.

Stainless steel hinges and lockable latches on doors.

125% environmental containment basin for oil and coolant; 110% secondary containment tank for fuel.

UL 142 listed subbase fuel tank for 24-hour run time with full load at the prime rating (minimum).

Customer connection panel with main circuit breaker, remote start connection, and emergency stop switch.

Alternator Features

Wound field excitation system with its unique PowerBoost design delivers great voltage response and short-circuit capability.

NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.

Capable of sustained line-to-neutral short-circuit current of up to 300% of the rated current for up to 2 seconds. (IEC 60092-301 short-circuit performance.)

Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.

Windings are vacuum-impregnated with epoxy varnish for dependability and long life.

Superior voltage waveform from a two-thirds pitch stator and skewed rotor.

Engine Features

Uses cooled Exhaust Gas Regeneration (EGR) and Diesel Oxidation Catalyst (DOC) to meet Tier 4 Final without a Diesel Particulate Filter (DPF).

Heavy-duty air cleaner with air restrictor indicator.

Lockable battery disconnect switch.
