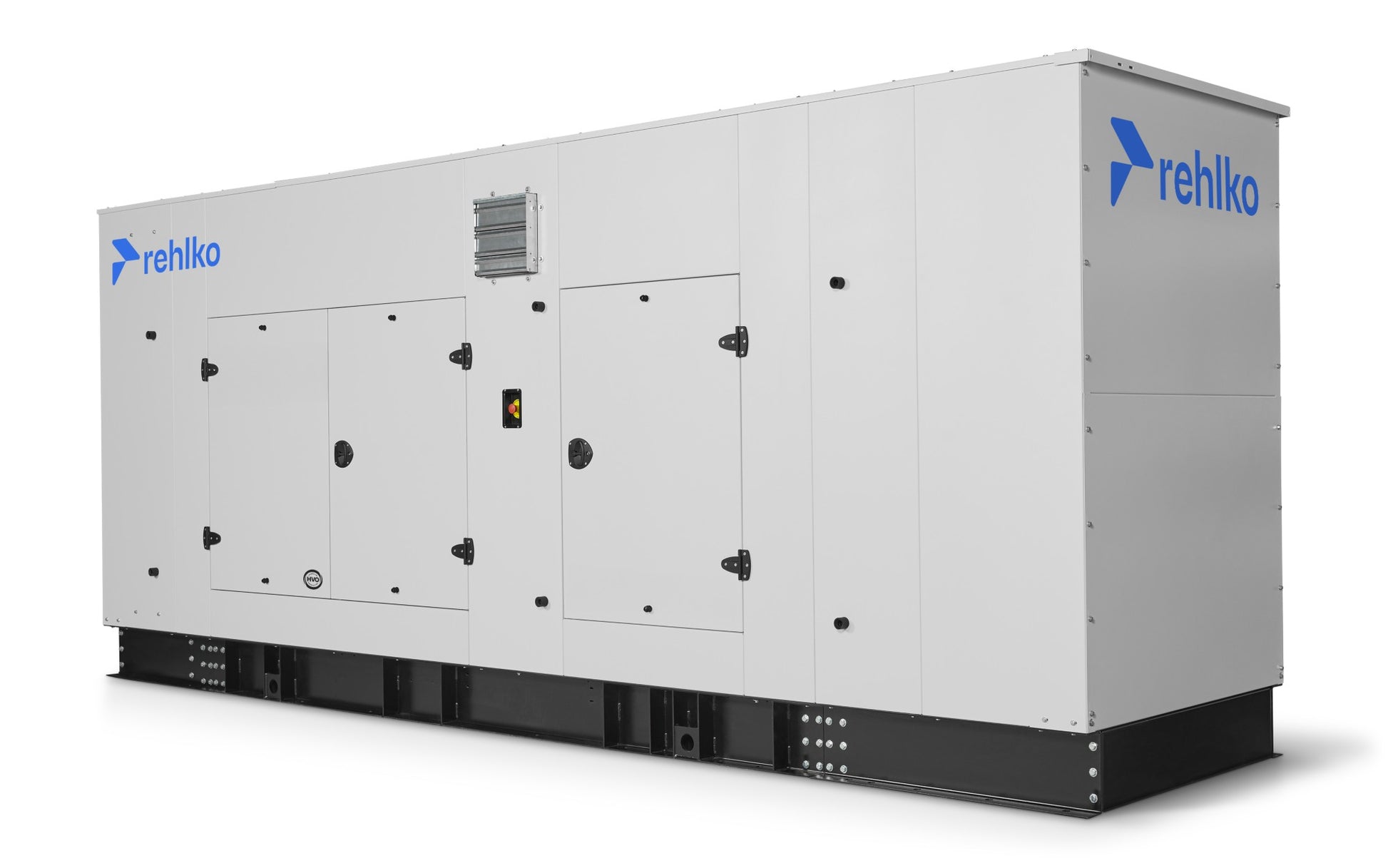

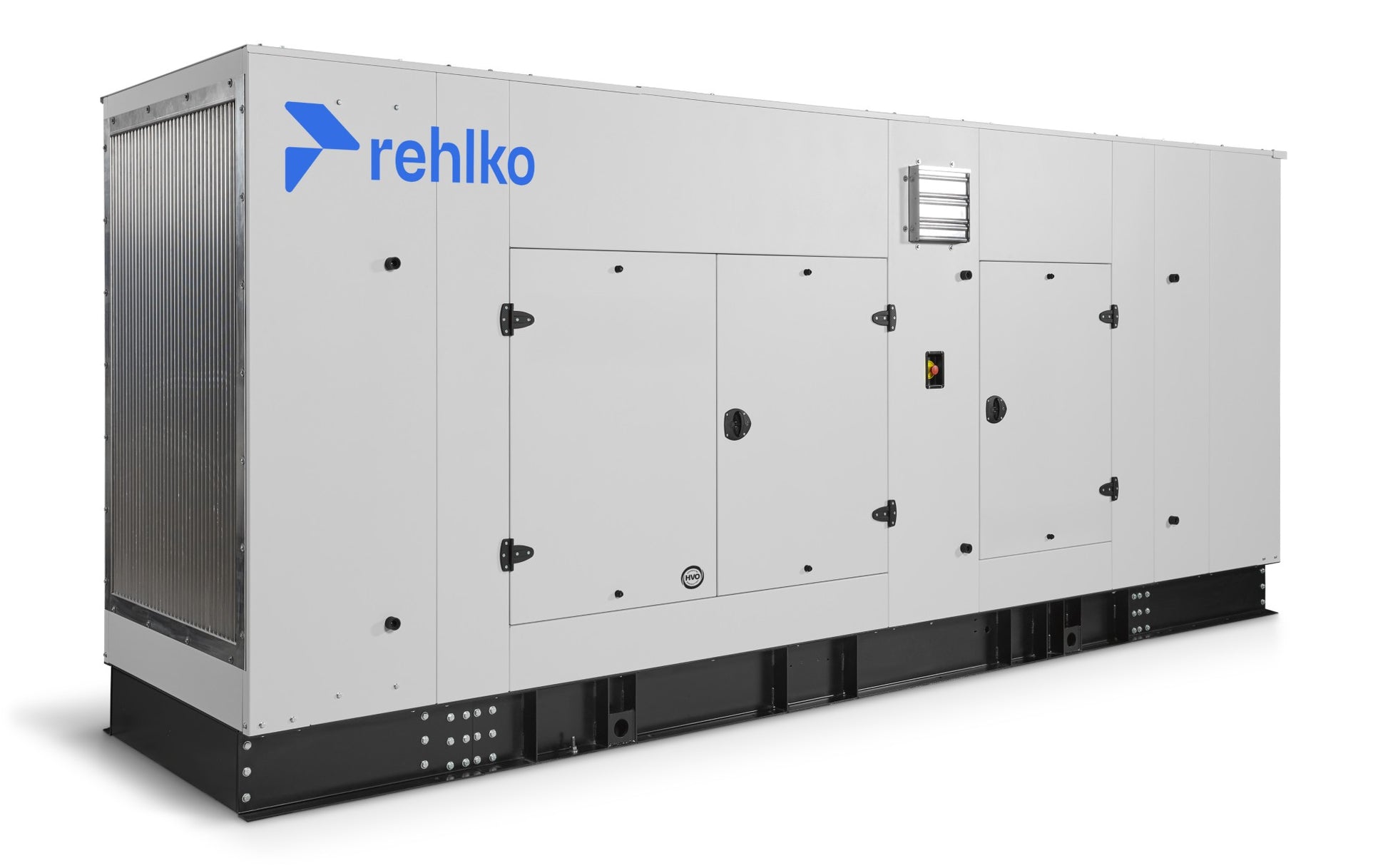

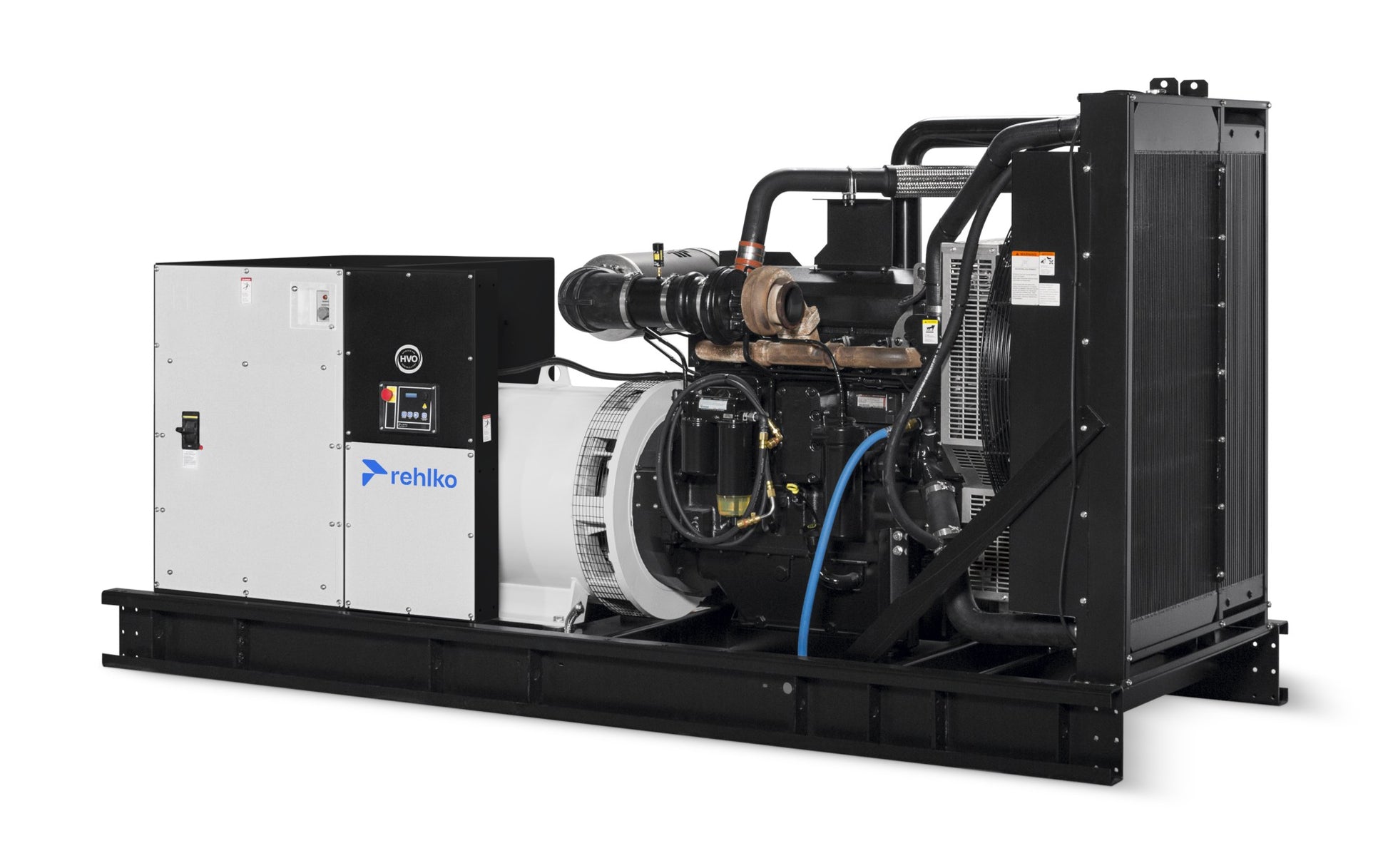

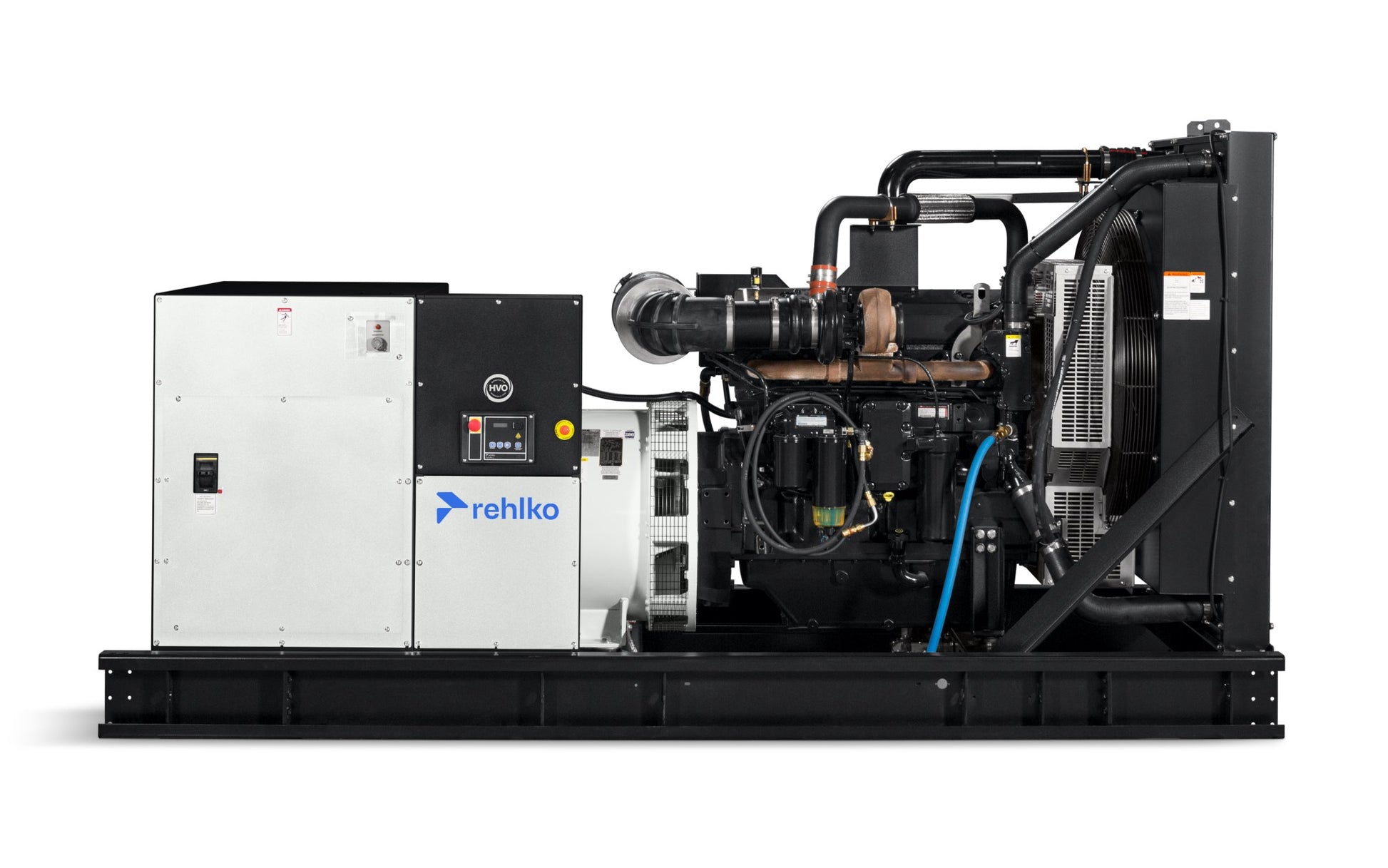

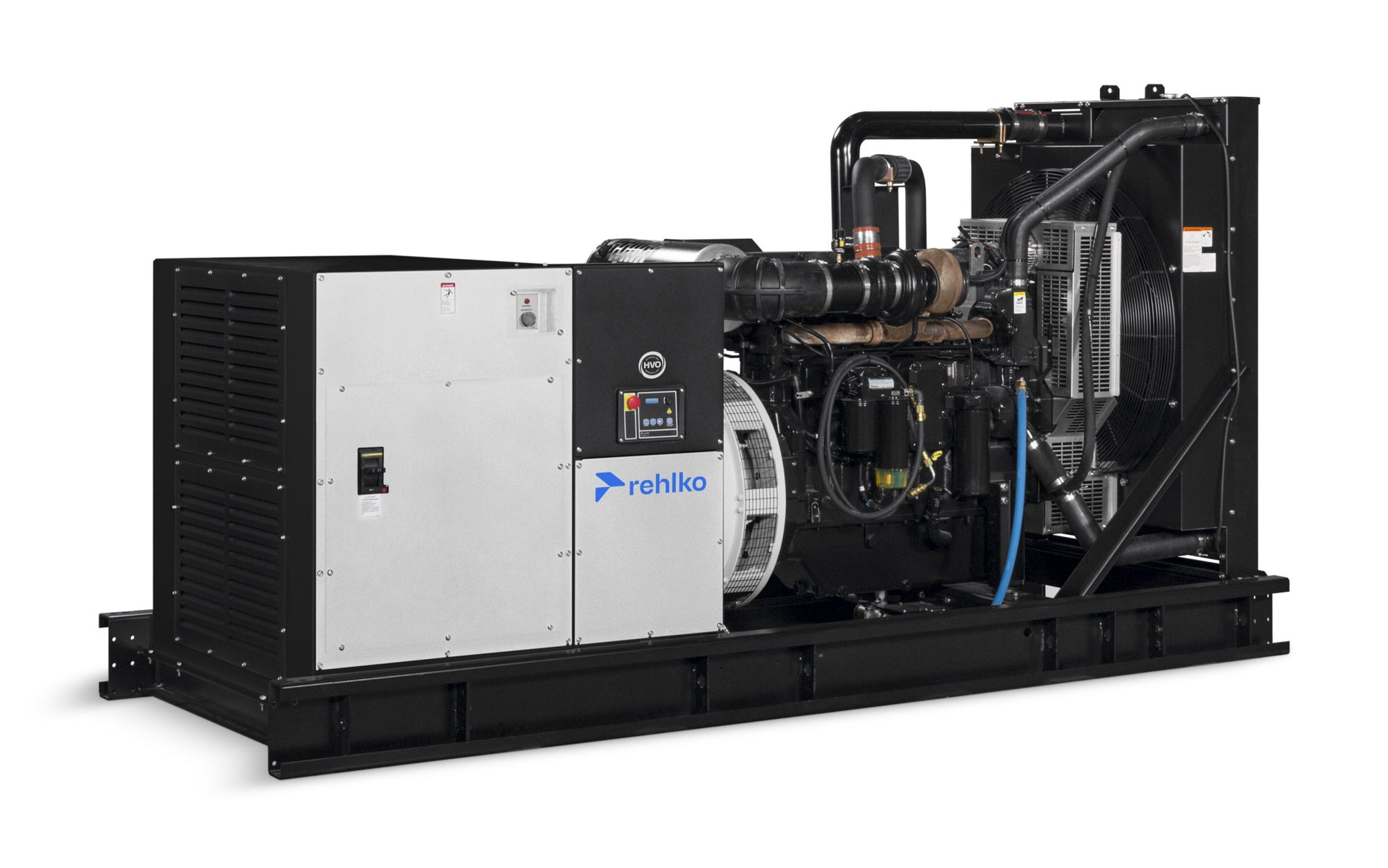

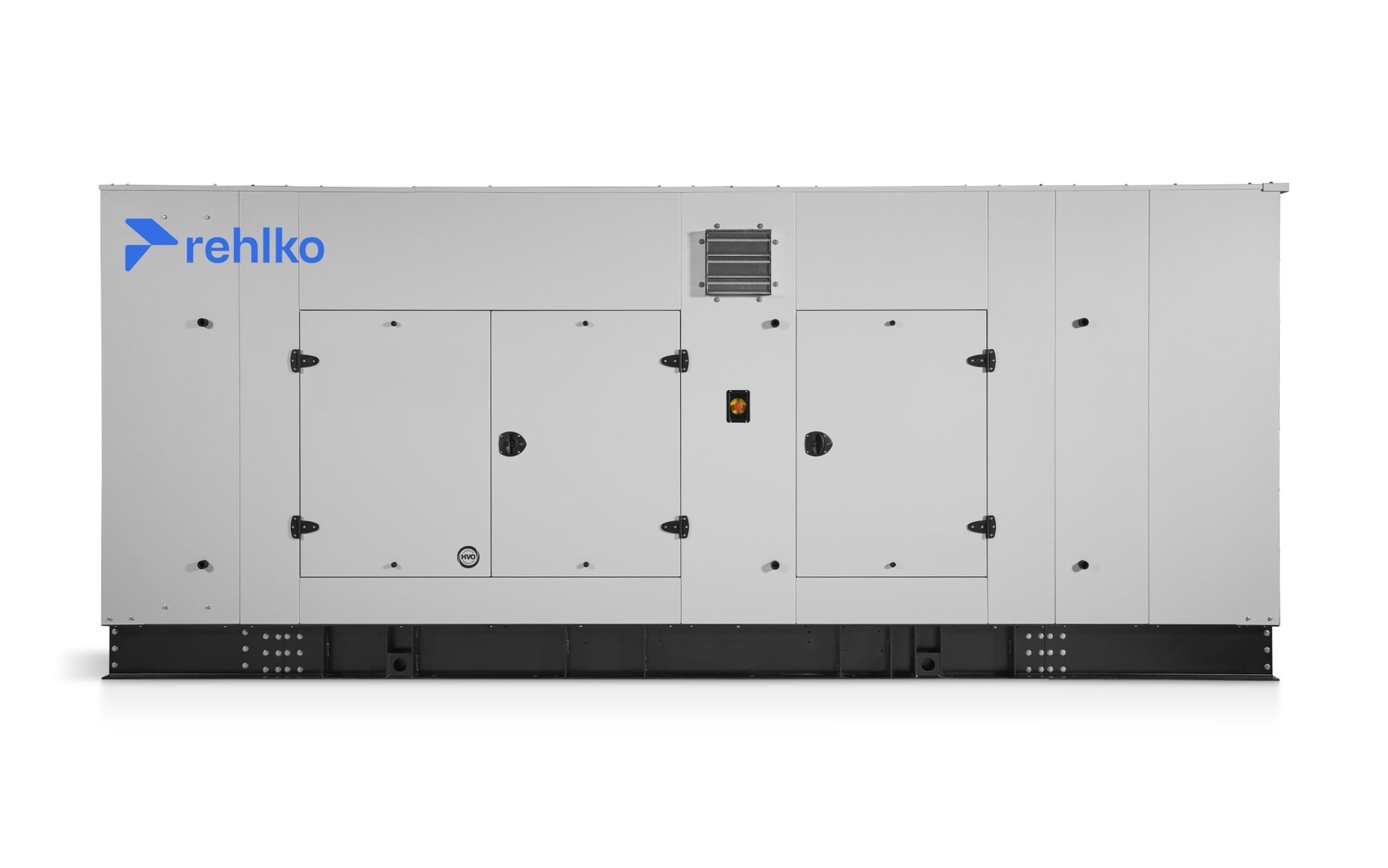

Kohler (Now Rehlko) 350kW Diesel Generator (Genset) – Model 350REOZJC

Standby Range (kW/kVA) 280-350/280-438

Prime Range (kW/kVA) 275-320/275-400

Fuel Type Diesel

Frequency 60 Hz

Speed 1800 RPM

Alternator Type 4-Pole, Rotating-Field

Engine Manufacturer John Deere

Standard Features

Rehlko provides one-source responsibility for the generating system and accessories.

Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO)/Renewable Diesel (RD) fuels compliant with EN15940/ASTM D975.

The generator set and its components are prototype-tested, factory-built, and production-tested.

The 60 Hz generator set offers a UL 2200 listing.

The generator set accepts rated load in one step.

The 60 Hz emergency generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.

A one-year limited warranty covers all generator set systems and components. Two- and five-year extended limited warranties are also available.

Mount up to four circuit breakers to allow circuit protection of selected priority loads.

Other Features

Rehlko designed controllers for one-source system integration and remote communication.

The low coolant level shutdown prevents overheating (standard on radiator models only).

Integral vibration isolation eliminates the need for under-unit vibration spring isolators.

An electronic, isochronous governor delivers precise frequency regulation.

Various sizes of UL 142 listed subbase fuel tanks available

Multiple circuit breaker configurations available

Alternator Features

The pilot-excited, permanent magnet (PM) alternator provides superior short-circuit capability.

NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.

Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds.

Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.

Superior voltage waveform from a two-thirds pitch stator and skewed rotor.

Brushless alternator with brushless pilot exciter for excellent load response.
