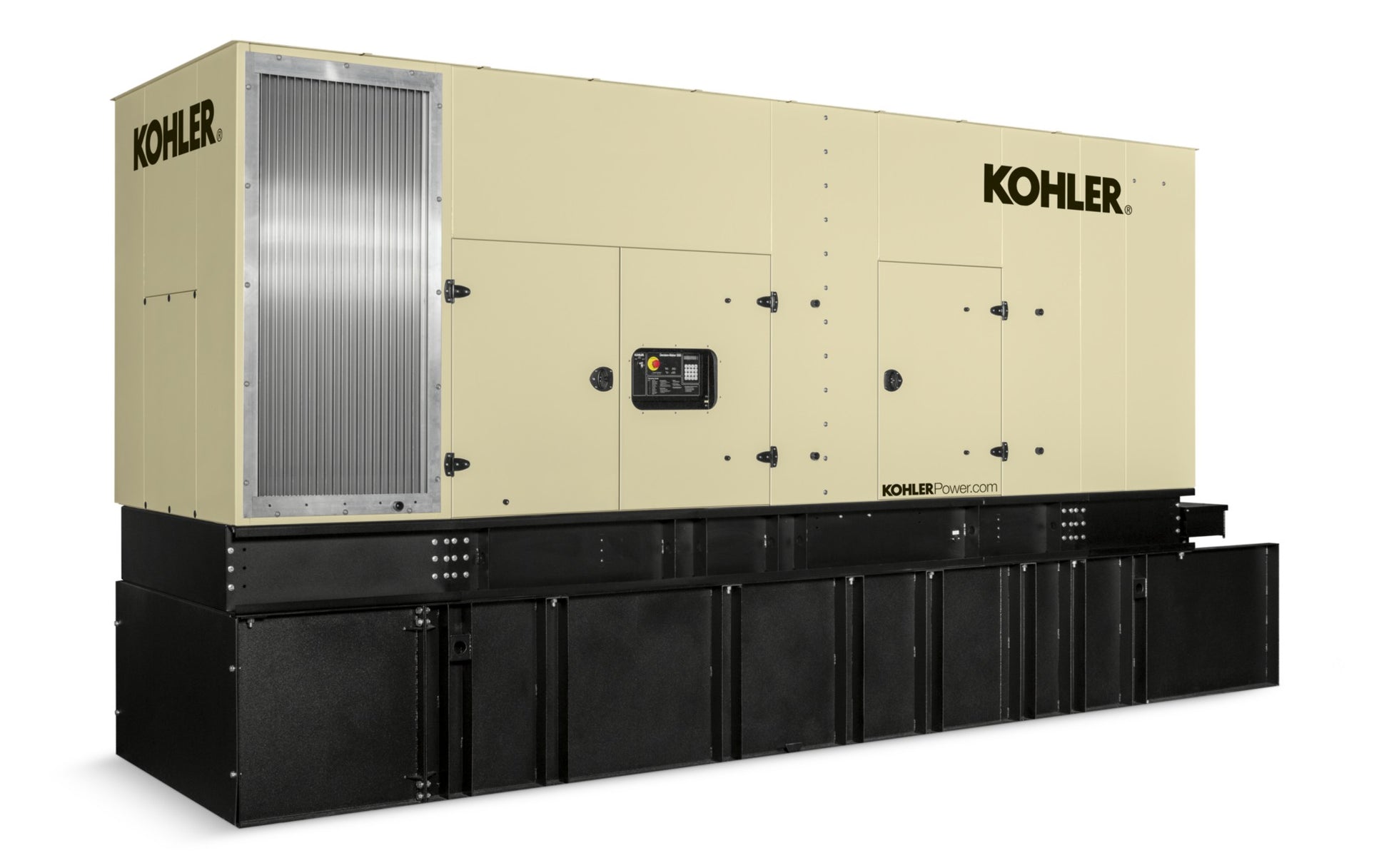

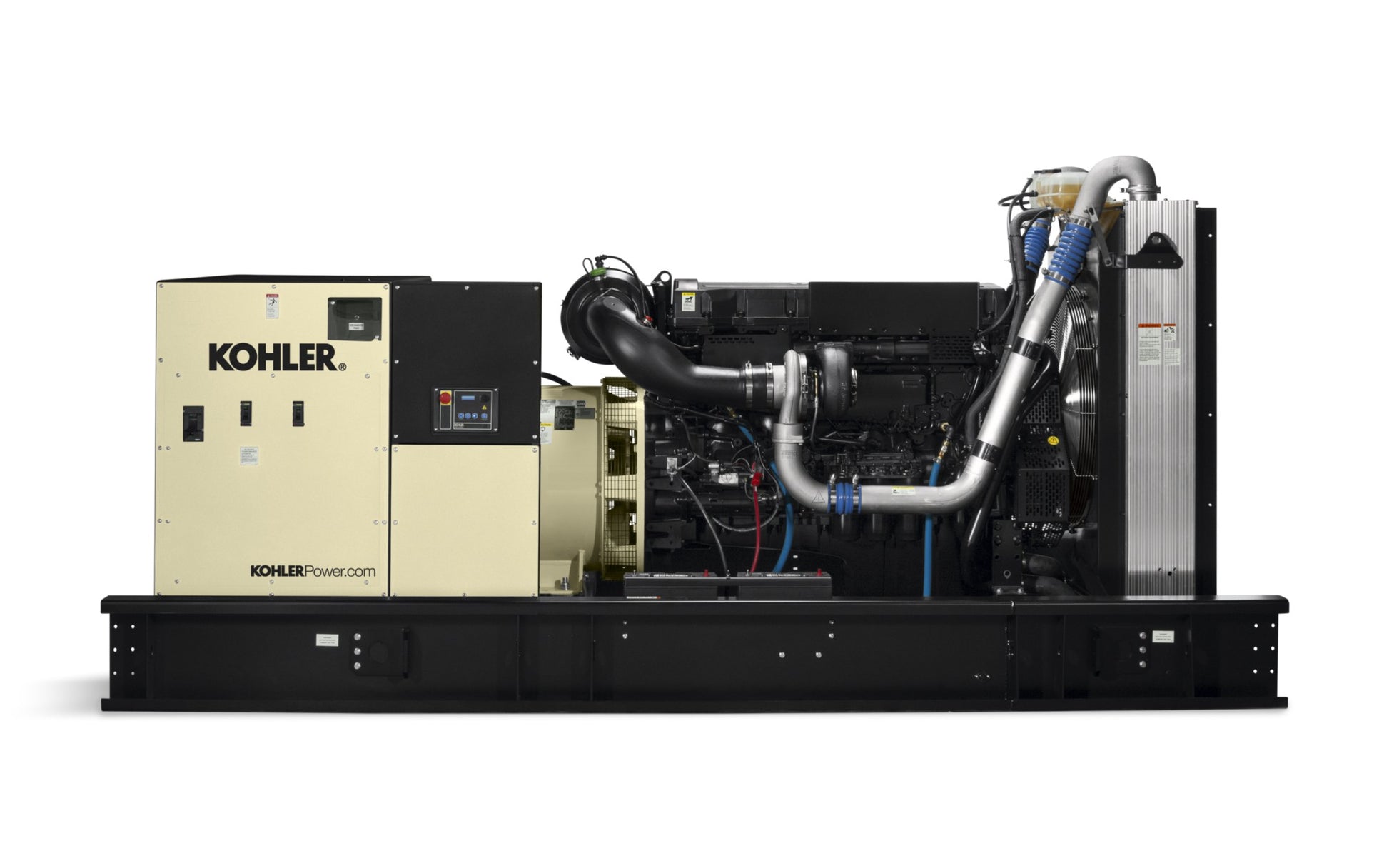

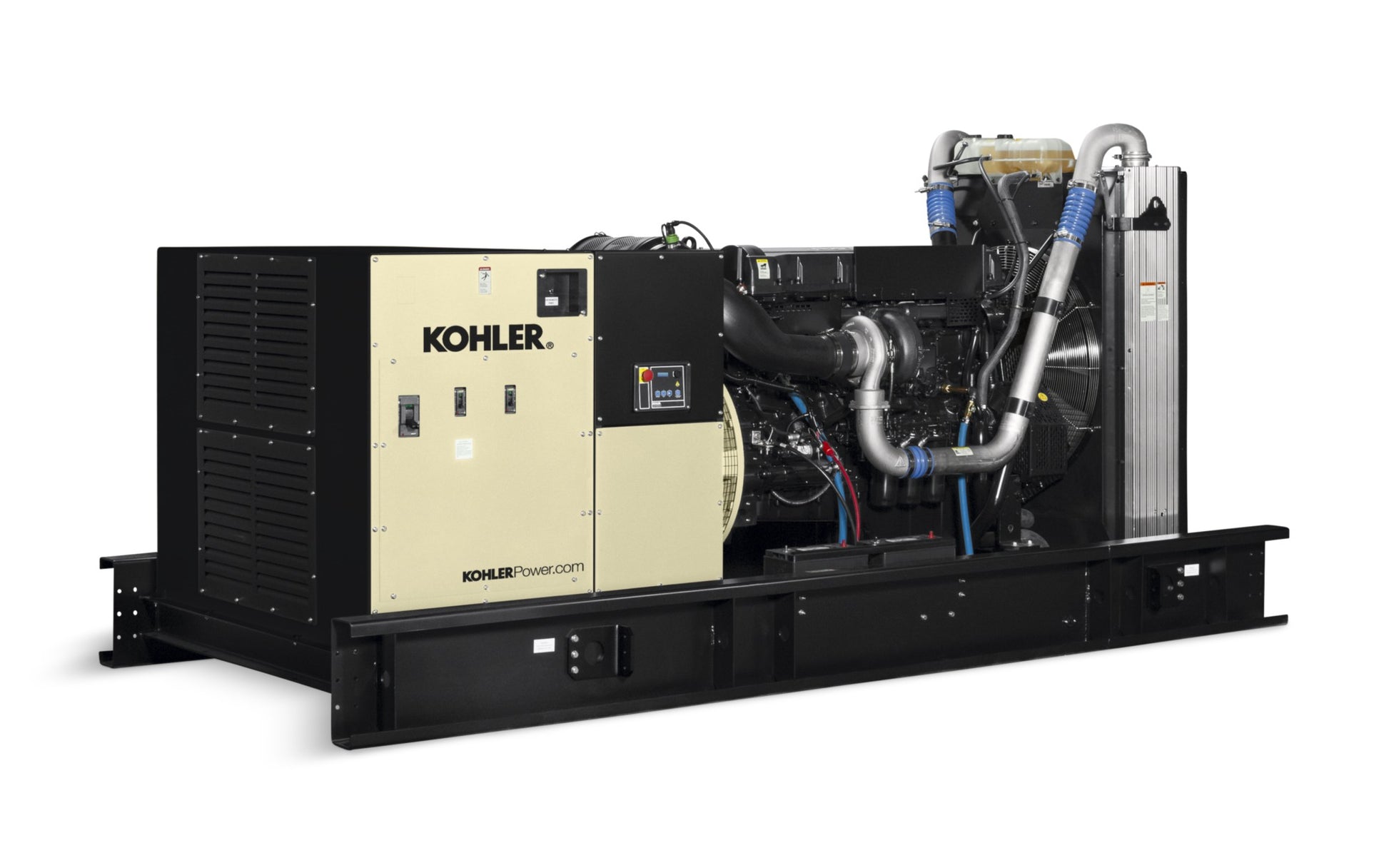

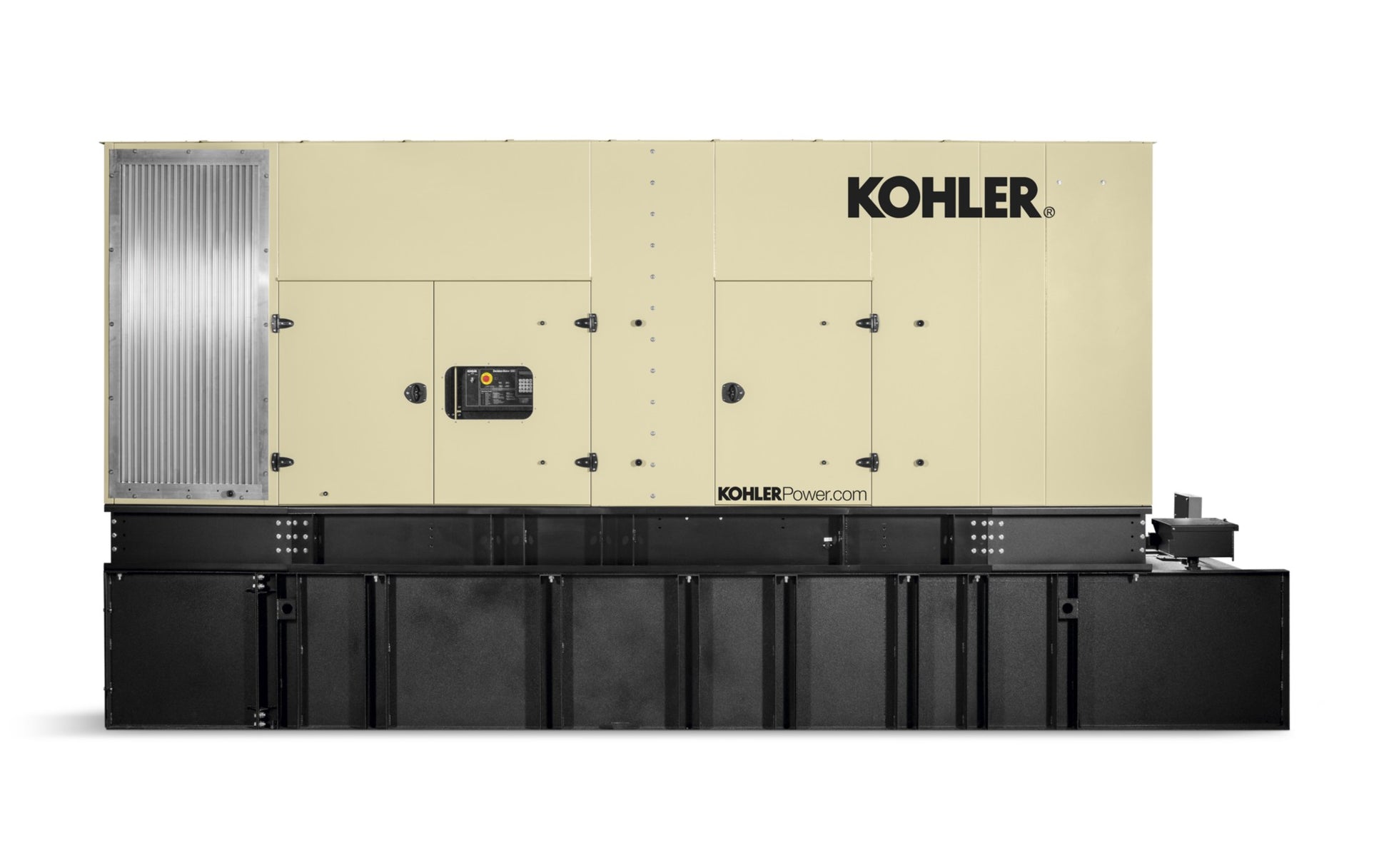

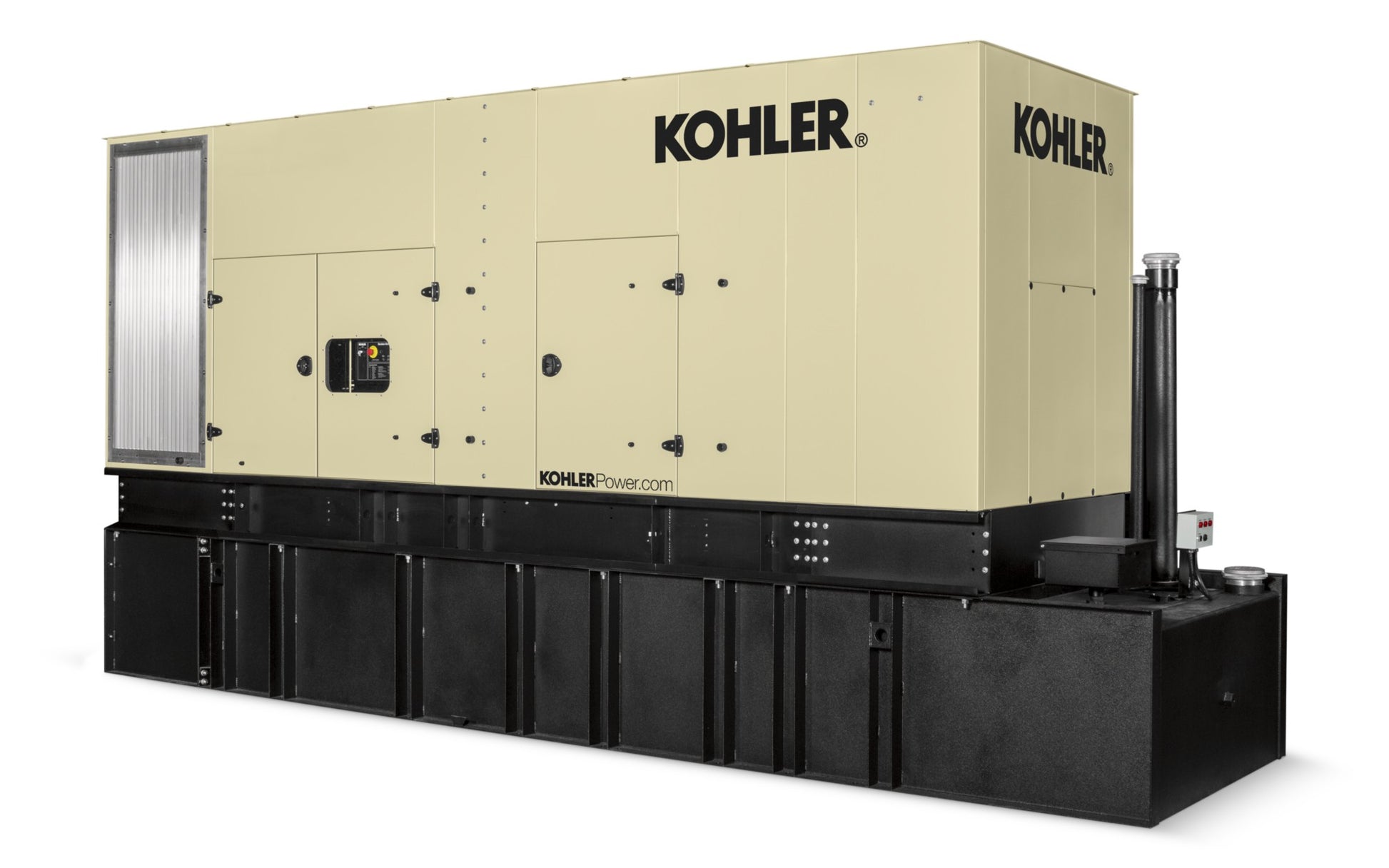

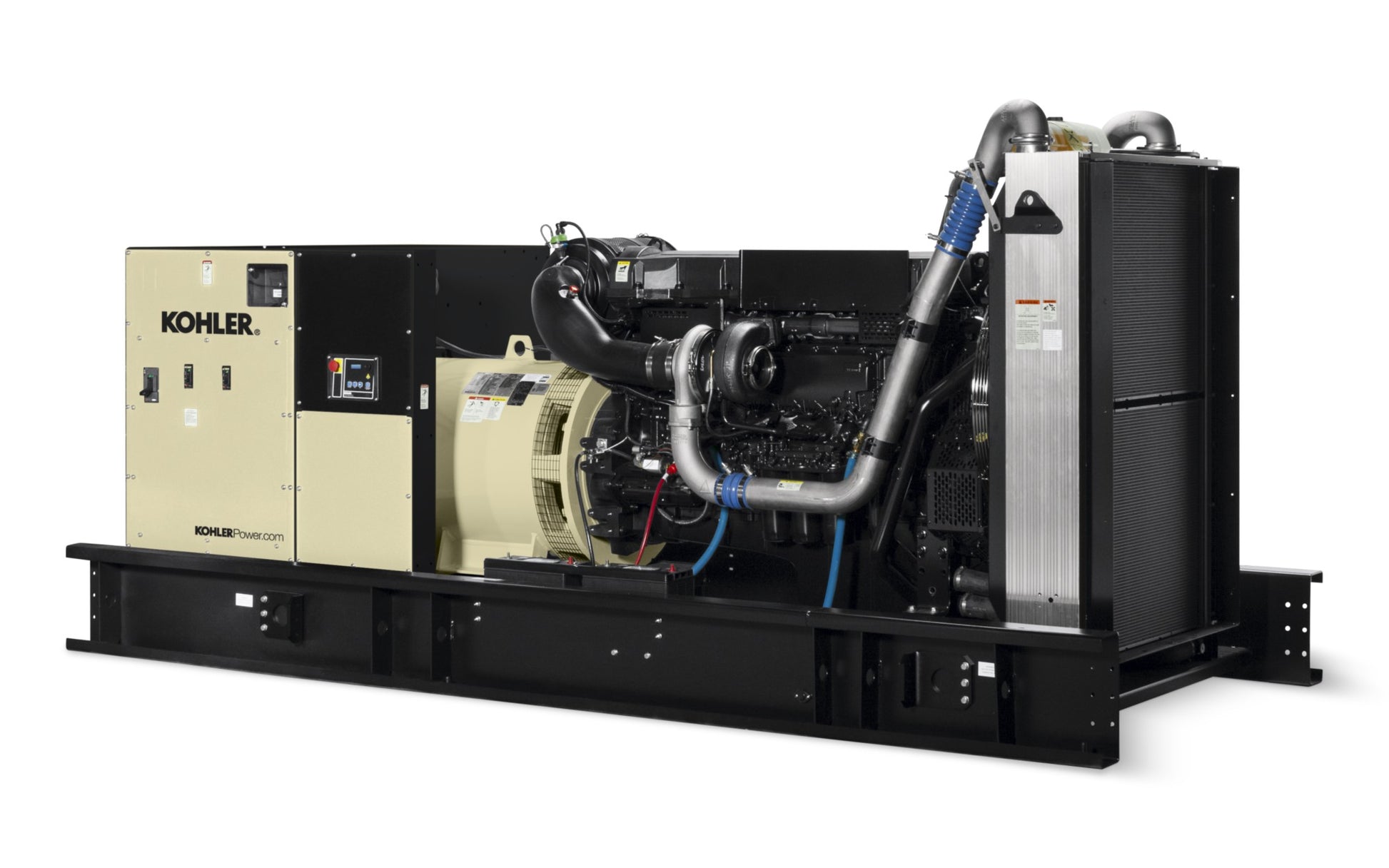

Kohler (Now Rehlko) 500kW Diesel Generator (Genset) – Model 500REOZVC

Ratings Range

60 Hz

Standby: kW 400- 515 kVA 500- 644

Prime: kW 400- 460 kVA 500- 575

Standard Features

Kohler Co. provides one-source responsibility for the generating system and accessories. Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO) / Renewable Diesel (RD) fuels compliant with EN15940 / ASTM D975. The generator set and its components are prototype-tested, factory-built, and production-tested. The 60 Hz generator set offers a UL 2200 listing. The generator set accepts rated load in one step. The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards. A standard one-year limited warranty covers all generator set systems and components. Two-, five-, and ten-year extended limited warranties are also available.

Alternator Features

The pilot-excited, permanent magnet (PM) alternator provides superior short-circuit capability. The brushless, rotating-field alternator has broadrange reconnectability.

Other Features

Kohler designed controllers for one-source system integration and remote communication. See Controllers on page 3. The low coolant level shutdown prevents overheating (standard on radiator models only). Integral vibration isolation eliminates the need for under-unit vibration spring isolators. An electronic, isochronous governor delivers precise frequency regulation. Multiple circuit breaker configurations.

Contact us at sales@nativeinstinct.com for a quote or if you have questions about your project. Ready to order? Call us at 1-833-354-3356.
