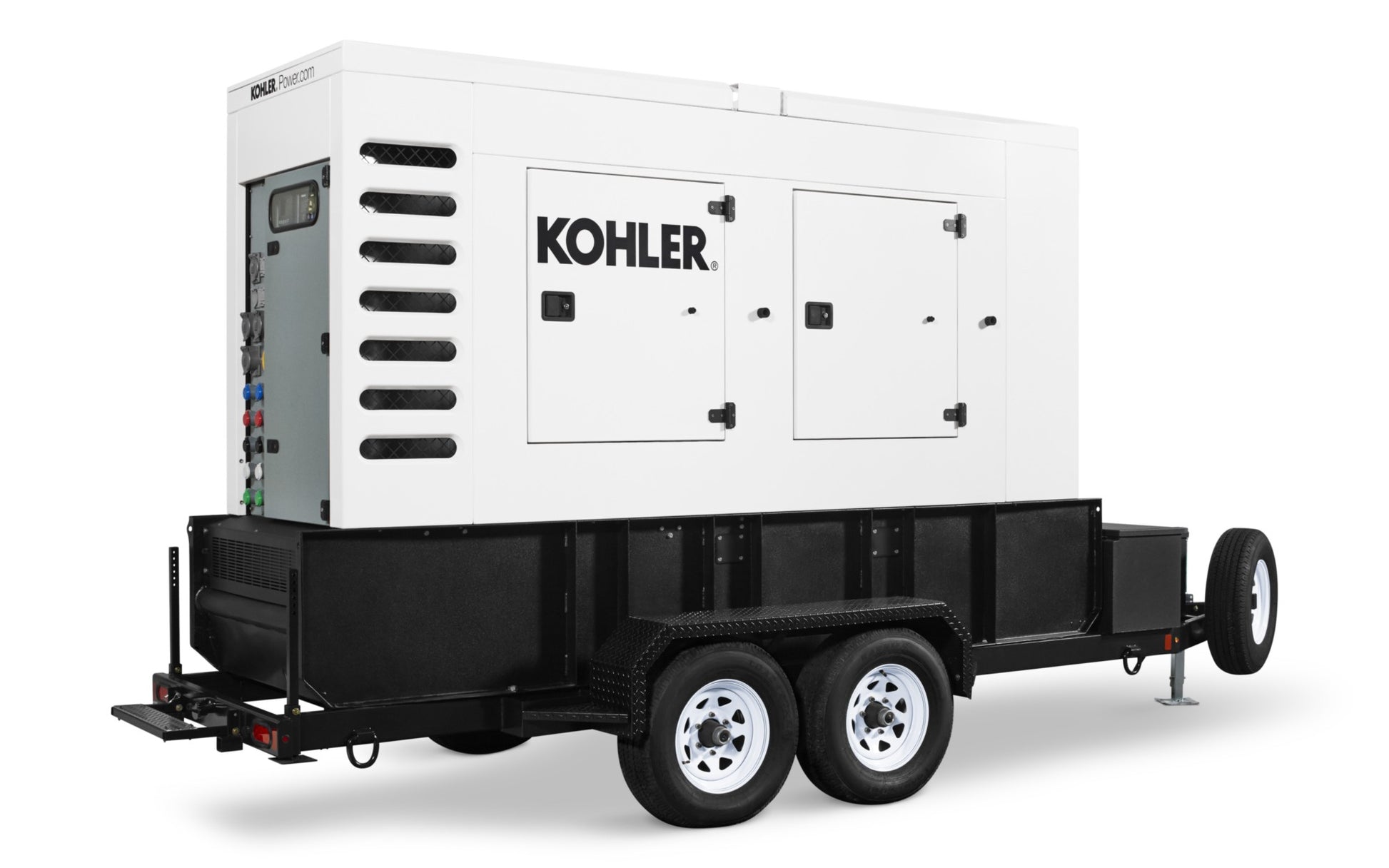

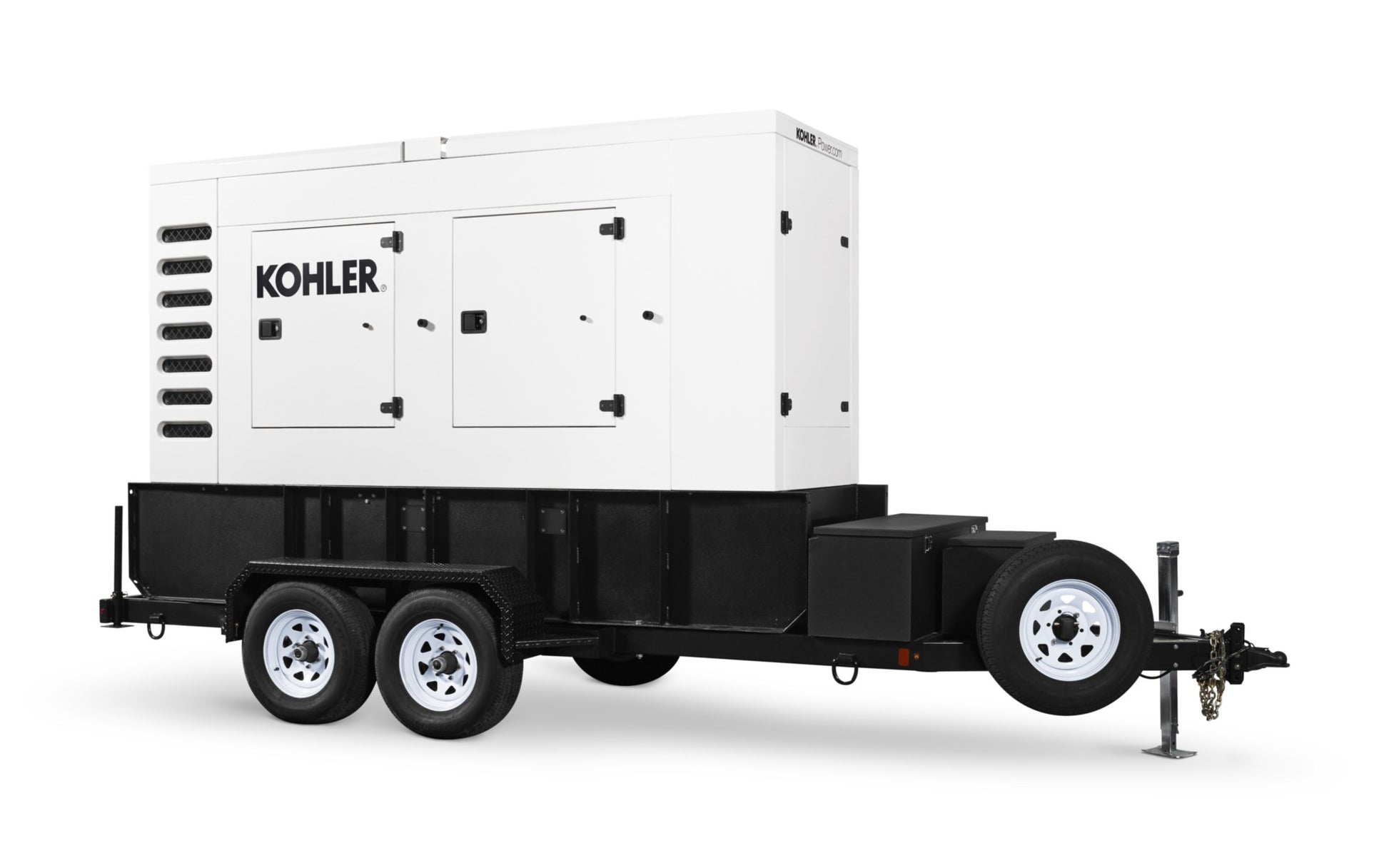

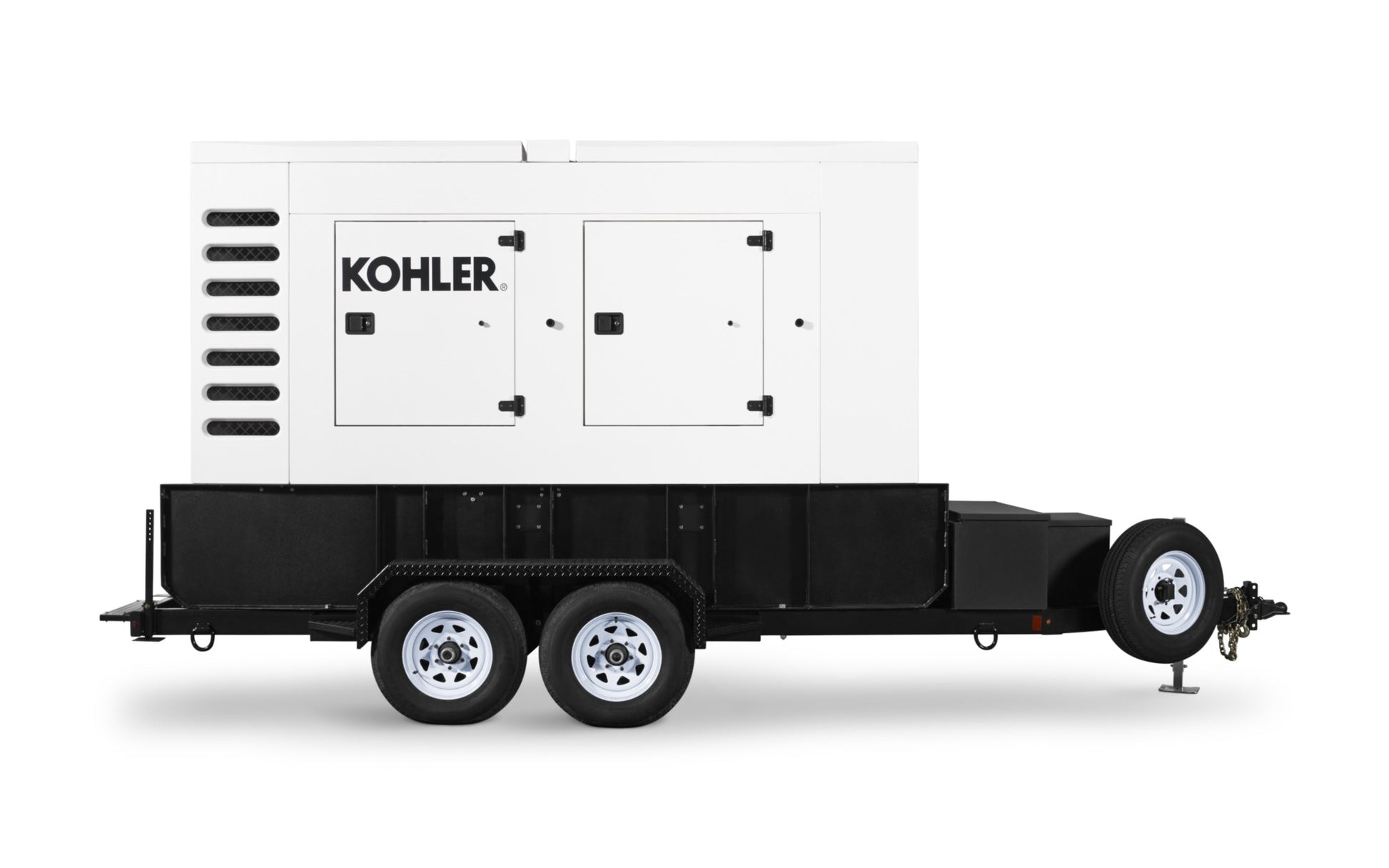

Kohler (Now Rehlko) Mobile Diesel Generator (Genset) – Model 145REOZT4 | Tier 4 Final

Standby Range (kW/kVA) 109-130/109-162.5

Prime Range (kW/kVA) 105.5-117/105.5-146

Fuel Type Diesel

Frequency 60 Hz

Speed 1800 RPM

Alternator Type 4-Pole, Rotating-Field

Engine Manufacturer John Deere

Emissions Tier 4 Final EPA-Certified for Nonroad Applications

Sound Levels 70dB(A) @ 7 m (23 ft.) full load at prime rating

Fuel Capacity/Run Time 244 gal.

Standard Features

Rehlko provides one-source responsibility for the generating system and accessories.

Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO)/Renewable Diesel (RD) fuels compliant with EN15940/ASTM D975.

The generator set and its components are prototype-tested, factory-built, and production-tested.

A three-year, 3000-hour limited warranty covers all generator set systems and components. The trailer has a one-year limited warranty.

Unit-mounted radiator with 50˚C (122˚F) ambient air capability at the prime rating.

The unique Fast-Response™ X excitation system delivers excellent voltage response and short-circuit capability using a rare-earth, permanent magnet(PM)-excited alternator.

The brushless, rotating-field alternator has broadrange reconnectability when ordered without a selector switch.

Engine Features

Heavy-duty air cleaner with air restrictor indicator.

The generator set engine is certified by the Environmental Protection Agency (EPA) to conform to Tier 4 Final nonroad emissions regulations.

Lockable battery disconnect switch.

Enclosure/tank Features

Durable steel, sound-attenuating housing with quiet operation of 70 dB(A) log average @ 7 m (23 ft.) with full load at the prime rating.

125% environmental containment basin for oil and coolant.

110% secondary containment tank for fuel.

Single-point lifting eye and four-point tie down system.

Subbase fuel tank for 24-hour run time with full load at prime rating (minimum).

Fuel fill and Diesel Exhaust Fluid (DEF) fill with lockable caps.

Alternator Features

NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting.

Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds.

Sustained short-circuit current enabling downstream circuit breakers to trip without collapsing the alternator field.

Self-ventilated and dripproof construction.

Windings are vacuum-impregnated with epoxy varnish for dependability and long life.

Superior voltage waveform from a two-thirds pitch stator and skewed rotor.
